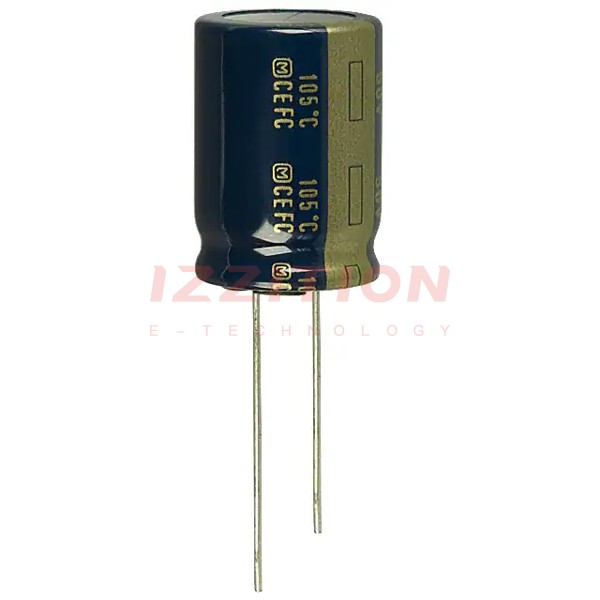

| Part Number | EEU-FC2A221 | EEU-FC2A221B | EEU-FC2A221L | EEU-FC2A220 |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 220 µF | 220 µF | 220 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 100 V | 100 V | 100 V | 100 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 760.5 mA @ 120 Hz | 760.5 mA @ 120 Hz | 676 mA @ 120 Hz | 169 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.08 A @ 100 kHz | 1.17 A @ 100 kHz | 1.04 A @ 100 kHz | 260 mA @ 100 kHz |
| Impedance | 89 mOhms | 89 mOhms | 87 mOhms | 680 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) | 1.063" (27.00mm) | 1.378" (35.00mm) | 0.453" (11.50mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
