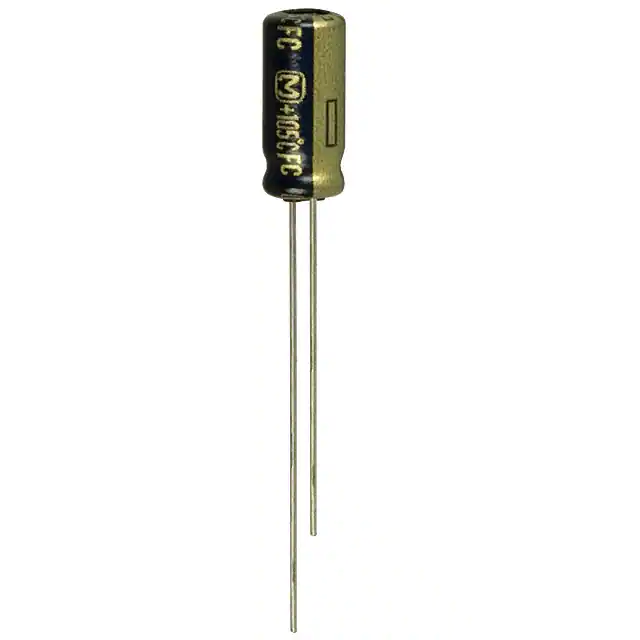

| Part Number | EEU-FC2A1R0B | EEU-FC2A1R0H | EEU-FC2A100B | EEU-FC2A120B | EEU-FC2A180B | EEU-FC2A1R0 |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Active | Active | Obsolete | Obsolete |
| Capacitance | 1 µF | 1 µF | 10 µF | 12 µF | 18 µF | 1 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | - | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 9.8 mA @ 120 Hz | 9.8 mA @ 120 Hz | 74.1 mA @ 120 Hz | 74.1 mA @ 120 Hz | 100.8 mA @ 120 Hz | 9.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | - | - | - | 114 mA @ 100 kHz | 155 mA @ 100 kHz | - |
| Impedance | - | 7.5 Ohms | 1.8 Ohms | 1.8 Ohms | 1.1 Ohms | 7.5 Ohms |
| Lead Spacing | - | - | 0.098" (2.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.079" (2.00mm) |
| Size / Dimension | - | - | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | - | - | 0.480" (12.20mm) | 0.579" (14.70mm) | 0.728" (18.50mm) | 0.433" (11.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
