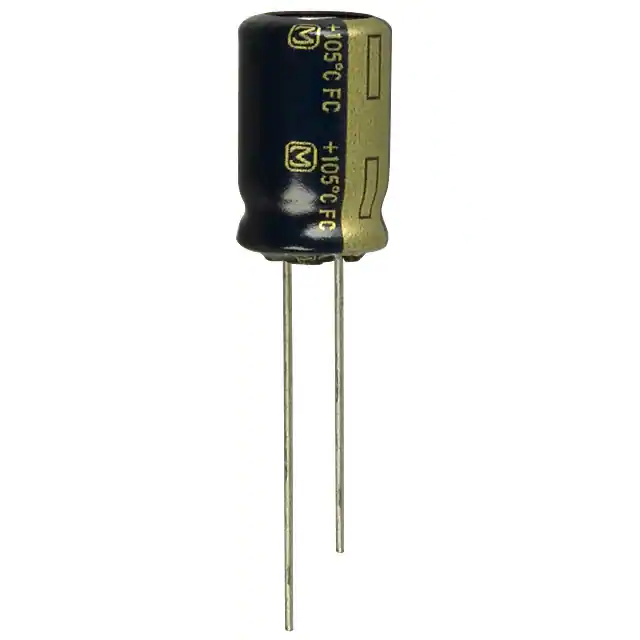

| Part Number | EEU-FC1V271 | EEU-FC1V272 | EEU-FC1V471 | EEU-FC1V271B | EEU-FC1J271 | EEU-FC1V221 | EEU-FC1V270 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 270 µF | 2700 µF | 470 µF | 270 µF | 270 µF | 220 µF | 27 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V | 35 V | 35 V | 63 V | 35 V | 35 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 682.5 mA @ 120 Hz | 3.09 A @ 120 Hz | 915 mA @ 120 Hz | 682.5 mA @ 120 Hz | 916.5 mA @ 120 Hz | 490.8 mA @ 120 Hz | 113.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz | 3.635 A @ 100 kHz | 1.22 A @ 100 kHz | 1.05 A @ 100 kHz | 1.41 A @ 100 kHz | 755 mA @ 100 kHz | 175 mA @ 100 kHz |
| Impedance | 68 mOhms | 16 mOhms | 52 mOhms | 68 mOhms | 90 mOhms | 90 mOhms | 800 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.079" (2.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.709" Dia (18.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.630" Dia (16.00mm) | 0.394" Dia (10.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) | 1.240" (31.50mm) | 0.787" (20.00mm) | 0.669" (17.00mm) | 0.591" (15.00mm) | 0.492" (12.50mm) | 0.472" (12.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
