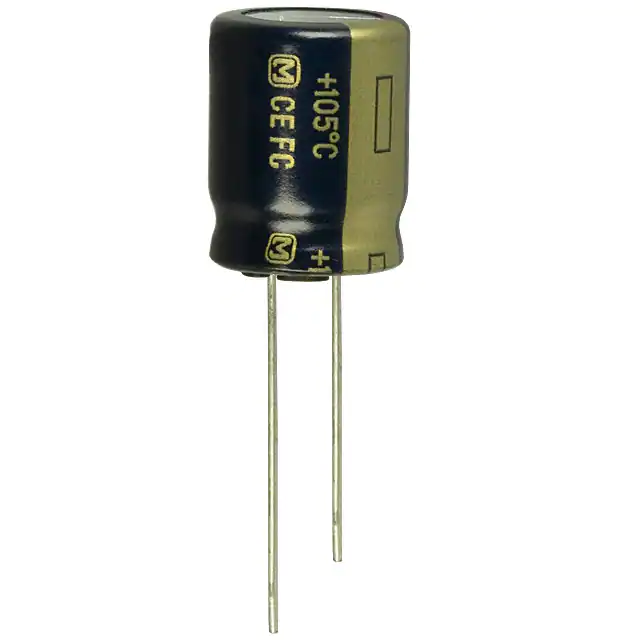

| Part Number | EEU-FC1V122 | EEU-FC1V182 | EEU-FC1V222 | EEU-FC1V122L | EEU-FC1V152 | EEU-FC1V122B | EEU-FC1J122 | EEU-FC1V102 | EEU-FC1V121 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1200 µF | 1800 µF | 2200 µF | 1200 µF | 1500 µF | 1200 µF | 1200 µF | 1000 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V | 35 V | 35 V | 35 V | 35 V | 63 V | 35 V | 35 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 1.764 A @ 120 Hz | 2.044 A @ 120 Hz | 2.408 A @ 120 Hz | 1.848 A @ 120 Hz | 2.044 A @ 120 Hz | 1.764 A @ 120 Hz | 2.36 A @ 120 Hz | 1.459 A @ 120 Hz | 360.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.205 A @ 100 kHz | 2.555 A @ 100 kHz | 3.01 A @ 100 kHz | 2.31 A @ 100 kHz | 2.555 A @ 100 kHz | 2.205 A @ 100 kHz | 2.95 A @ 100 kHz | 1.945 A @ 100 kHz | 555 mA @ 100 kHz |
| Impedance | 29 mOhms | 22 mOhms | 18 mOhms | 25 mOhms | 22 mOhms | 29 mOhms | 32 mOhms | 30 mOhms | 117 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) | 0.492" Dia (12.50mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) | 1.063" (27.00mm) | 1.240" (31.50mm) | 1.181" (30.00mm) | 0.984" (25.00mm) | 0.866" (22.00mm) | 1.240" (31.50mm) | 0.984" (25.00mm) | 0.453" (11.50mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
