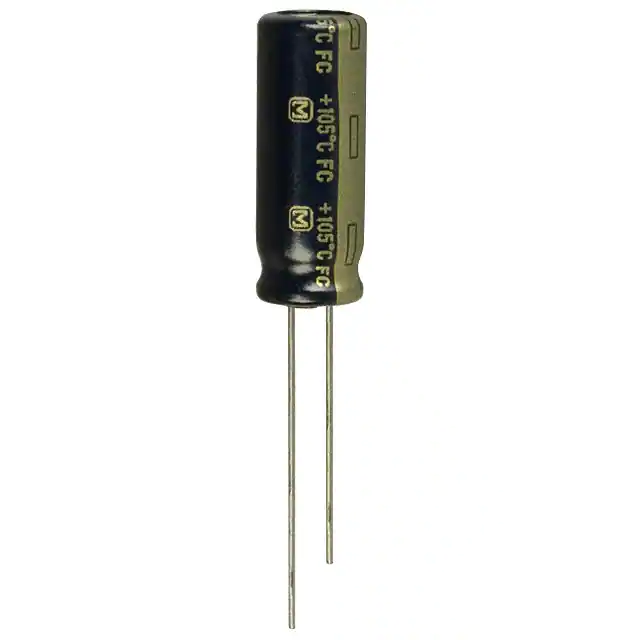

| Part Number | EEU-FC1V121B | EEU-FC1V221B | EEU-FC1V151B | EEU-FC1V122B | EEU-FC1V121BJ | EEU-FC1V181B | EEU-FC1J121B | EEU-FC1V101B | EEU-FC1V121 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 120 µF | 220 µF | 150 µF | 1200 µF | 120 µF | 180 µF | 120 µF | 100 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V | 35 V | 35 V | 35 V | 35 V | 63 V | 35 V | 35 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 3000 Hrs @ 105°C | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C | 2000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 360.8 mA @ 120 Hz | 490.8 mA @ 120 Hz | 360.8 mA @ 120 Hz | 1.764 A @ 120 Hz | 360.8 mA @ 120 Hz | 490.8 mA @ 120 Hz | 390 mA @ 120 Hz | 360.8 mA @ 120 Hz | 360.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 555 mA @ 100 kHz | 755 mA @ 100 kHz | 555 mA @ 100 kHz | 2.205 A @ 100 kHz | - | 755 mA @ 100 kHz | 600 mA @ 100 kHz | 555 mA @ 100 kHz | 555 mA @ 100 kHz |
| Impedance | 117 mOhms | 90 mOhms | 117 mOhms | 29 mOhms | 117 mOhms | 90 mOhms | 194 mOhms | 117 mOhms | 117 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.630" Dia (16.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) | 0.531" (13.50mm) | 0.492" (12.50mm) | 0.866" (22.00mm) | 0.492" (12.50mm) | 0.531" (13.50mm) | 0.669" (17.00mm) | 0.650" (16.50mm) | 0.453" (11.50mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
