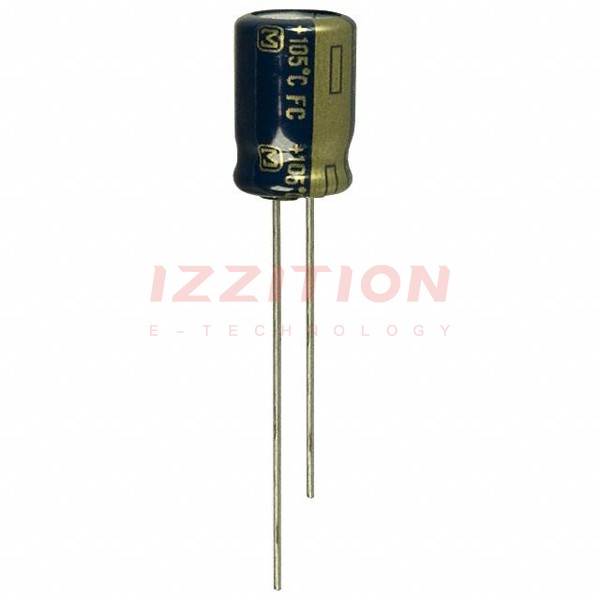

| Part Number | EEU-FC1J680 | EEU-FC1V680 | EEU-FC1J681 | EEU-FC1H680 | EEU-FC1J180 |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Obsolete |
| Capacitance | 68 µF | 68 µF | 680 µF | 68 µF | 18 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 35 V | 63 V | 50 V | 63 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C | 5000 Hrs @ 105°C | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 263.3 mA @ 120 Hz | 188.5 mA @ 120 Hz | 1.62 A @ 120 Hz | 315.3 mA @ 120 Hz | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 405 mA @ 100 kHz | 290 mA @ 100 kHz | 2.16 A @ 100 kHz | 485 mA @ 100 kHz | 200 mA @ 100 kHz |
| Impedance | 342 mOhms | 350 mOhms | 50 mOhms | 234 mOhms | 1.3 Ohms |
| Lead Spacing | 0.138" (3.50mm) | 0.098" (2.50mm) | 0.295" (7.50mm) | 0.138" (3.50mm) | 0.079" (2.00mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) | 0.630" Dia (16.00mm) | 0.315" Dia (8.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) | 0.441" (11.20mm) | 0.984" (25.00mm) | 0.453" (11.50mm) | 0.591" (15.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
