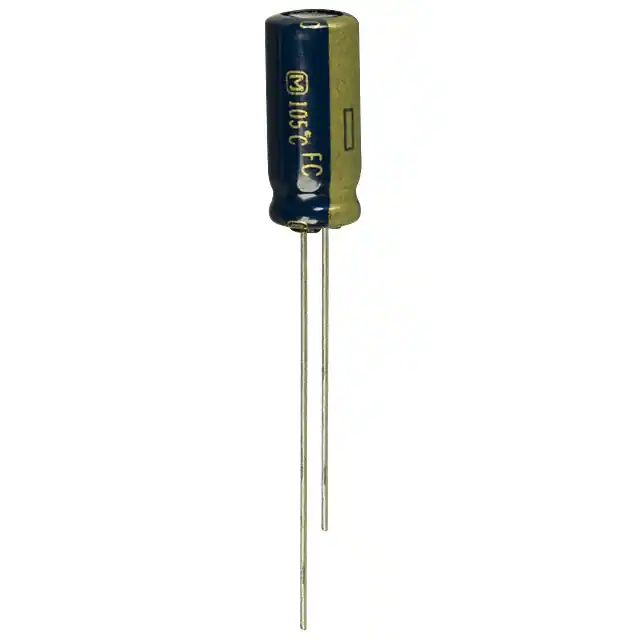

| Part Number | EEU-FC1J390 | EEU-FC1J391 | EEU-FC1V390 | EEU-FC1J390B | EEU-FC1J390H | EEU-FC1H390 | EEU-FC1J330 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Active | Active |
| Capacitance | 39 µF | 390 µF | 39 µF | 39 µF | 39 µF | 39 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V | 35 V | 63 V | 63 V | 50 V | 63 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 5000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 214.5 mA @ 120 Hz | 1.29 A @ 120 Hz | 152.8 mA @ 120 Hz | 214.5 mA @ 120 Hz | 214.5 mA @ 120 Hz | 169 mA @ 120 Hz | 156 mA @ 120 Hz |
| Ripple Current @ High Frequency | 330 mA @ 100 kHz | 1.72 A @ 100 kHz | 235 mA @ 100 kHz | 330 mA @ 100 kHz | 330 mA @ 100 kHz | 260 mA @ 100 kHz | 240 mA @ 100 kHz |
| Impedance | 700 mOhms | 70 mOhms | 500 mOhms | 700 mOhms | 700 mOhms | 600 mOhms | 1 Ohms |
| Lead Spacing | 0.098" (2.50mm) | 0.197" (5.00mm) | 0.079" (2.00mm) | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.492" Dia (12.50mm) | 0.197" Dia (5.00mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.591" (15.00mm) | 0.984" (25.00mm) | 0.591" (15.00mm) | 0.728" (18.50mm) | 0.630" (16.00mm) | 0.480" (12.20mm) | 0.441" (11.20mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
