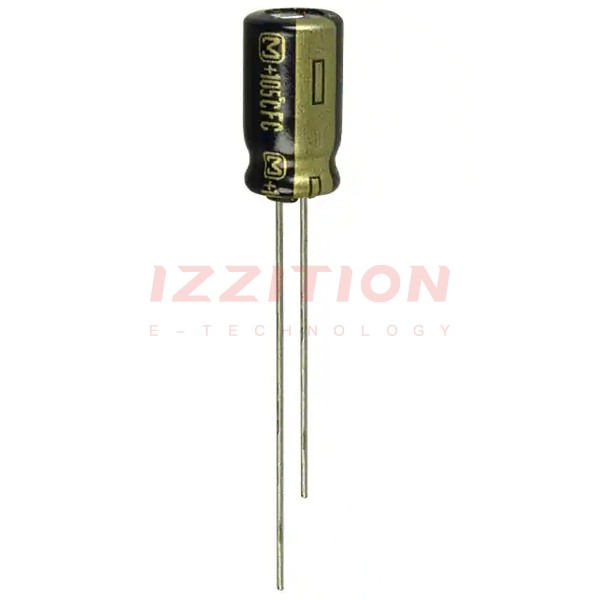

| Part Number | EEU-FC1J330 | EEU-FC1V330 | EEU-FC1J331 | EEU-FC1J330H | EEU-FC1J330B | EEU-FC1J390 | EEU-FC1H330 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active |
| Capacitance | 33 µF | 33 µF | 330 µF | 33 µF | 33 µF | 39 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 35 V | 63 V | 63 V | 63 V | 63 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 5000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 156 mA @ 120 Hz | 113.8 mA @ 120 Hz | 835.3 mA @ 120 Hz | 156 mA @ 120 Hz | 156 mA @ 120 Hz | 214.5 mA @ 120 Hz | 169 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz | 175 mA @ 100 kHz | 1.285 A @ 100 kHz | - | 240 mA @ 100 kHz | 330 mA @ 100 kHz | 260 mA @ 100 kHz |
| Impedance | 1 Ohms | 800 mOhms | 85 mOhms | 1 Ohms | 1 Ohms | 700 mOhms | 600 mOhms |
| Lead Spacing | 0.098" (2.50mm) | 0.079" (2.00mm) | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.197" Dia (5.00mm) | 0.492" Dia (12.50mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.441" (11.20mm) | 0.472" (12.00mm) | 0.787" (20.00mm) | 0.480" (12.20mm) | 0.579" (14.70mm) | 0.591" (15.00mm) | 0.441" (11.20mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
