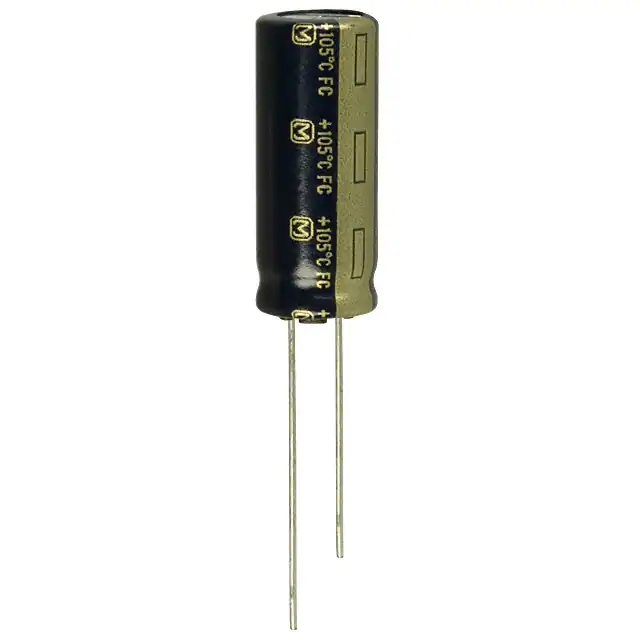

| Part Number | EEU-FC1J221 | EEU-FC1V221 | EEU-FC1J821 | EEU-FC1J221B | EEU-FC1J221X | EEU-FC1J221S | EEU-FC1J271 | EEU-FC1H221 | EEU-FC1J121 | EEU-FC1J220 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 220 µF | 220 µF | 820 µF | 220 µF | 220 µF | 220 µF | 270 µF | 220 µF | 120 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 35 V | 63 V | 63 V | 63 V | 63 V | 63 V | 50 V | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 682.5 mA @ 120 Hz | 490.8 mA @ 120 Hz | 2.003 A @ 120 Hz | 682.5 mA @ 120 Hz | 575.3 mA @ 120 Hz | 835.3 mA @ 120 Hz | 916.5 mA @ 120 Hz | 669.5 mA @ 120 Hz | 390 mA @ 120 Hz | 156 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz | 755 mA @ 100 kHz | 2.67 A @ 100 kHz | 1.05 A @ 100 kHz | 885 mA @ 100 kHz | 1.285 A @ 100 kHz | 1.41 A @ 100 kHz | 1.03 A @ 100 kHz | 600 mA @ 100 kHz | 240 mA @ 100 kHz |
| Impedance | 130 mOhms | 90 mOhms | 43 mOhms | 130 mOhms | 147 mOhms | 85 mOhms | 90 mOhms | 90 mOhms | 194 mOhms | 1 Ohms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.630" Dia (16.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.984" (25.00mm) | 0.492" (12.50mm) | 1.240" (31.50mm) | 1.063" (27.00mm) | 0.866" (22.00mm) | 0.787" (20.00mm) | 0.591" (15.00mm) | 0.787" (20.00mm) | 0.630" (16.00mm) | 0.441" (11.20mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
