Please send RFQ , we will respond immediately.

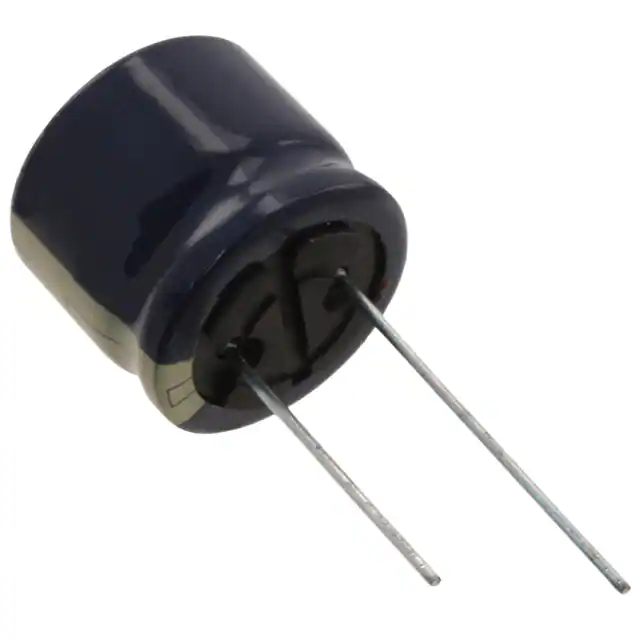

| Part Number | EEU-FC1J182 | EEU-FC1V182 | EEU-FC1H182 | EEU-FC1J102 | EEU-FC1J122 | EEU-FC1J152 | EEU-FC1J180 | EEU-FC1J181 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Active |
| Capacitance | 1800 µF | 1800 µF | 1800 µF | 1000 µF | 1200 µF | 1500 µF | 18 µF | 180 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 35 V | 50 V | 63 V | 63 V | 63 V | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 1000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 2.564 A @ 120 Hz | 2.044 A @ 120 Hz | 2.4 A @ 120 Hz | 2.078 A @ 120 Hz | 2.36 A @ 120 Hz | 2.476 A @ 120 Hz | 130 mA @ 120 Hz | 575.3 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.205 A @ 100 kHz | 2.555 A @ 100 kHz | 3 A @ 100 kHz | 2.77 A @ 100 kHz | 2.95 A @ 100 kHz | 3.095 A @ 100 kHz | 200 mA @ 100 kHz | 885 mA @ 100 kHz |
| Impedance | 25 mOhms | 22 mOhms | 25 mOhms | 36 mOhms | 32 mOhms | 30 mOhms | 1.3 Ohms | 147 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.079" (2.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.709" Dia (18.00mm) | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) | 0.197" Dia (5.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) | 1.063" (27.00mm) | 1.240" (31.50mm) | 1.398" (35.50mm) | 1.240" (31.50mm) | 1.398" (35.50mm) | 0.591" (15.00mm) | 0.787" (20.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
