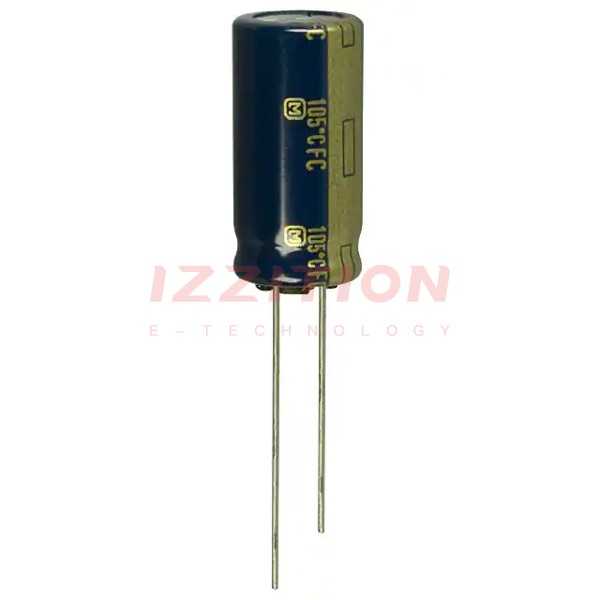

| Part Number | EEU-FC1J181 | EEU-FC1J182 | EEU-FC1J681 | EEU-FC1J181S | EEU-FC1V181 | EEU-FC1J181B | EEU-FC1J101 | EEU-FC1J121 | EEU-FC1J151 | EEU-FC1J180 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Capacitance | 180 µF | 1800 µF | 680 µF | 180 µF | 180 µF | 180 µF | 100 µF | 120 µF | 150 µF | 18 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V | 63 V | 63 V | 35 V | 63 V | 63 V | 63 V | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 575.3 mA @ 120 Hz | 2.564 A @ 120 Hz | 1.62 A @ 120 Hz | 663 mA @ 120 Hz | 490.8 mA @ 120 Hz | 575.3 mA @ 120 Hz | 347.8 mA @ 120 Hz | 390 mA @ 120 Hz | 448.5 mA @ 120 Hz | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 885 mA @ 100 kHz | 3.205 A @ 100 kHz | 2.16 A @ 100 kHz | 1.02 A @ 100 kHz | 755 mA @ 100 kHz | 885 mA @ 100 kHz | 535 mA @ 100 kHz | 600 mA @ 100 kHz | 690 mA @ 100 kHz | 200 mA @ 100 kHz |
| Impedance | 147 mOhms | 25 mOhms | 50 mOhms | 150 mOhms | 90 mOhms | 147 mOhms | 256 mOhms | 194 mOhms | 178 mOhms | 1.3 Ohms |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.079" (2.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.709" Dia (18.00mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) | 1.575" (40.00mm) | 0.984" (25.00mm) | 0.630" (16.00mm) | 0.492" (12.50mm) | 0.866" (22.00mm) | 0.492" (12.50mm) | 0.630" (16.00mm) | 0.787" (20.00mm) | 0.591" (15.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
