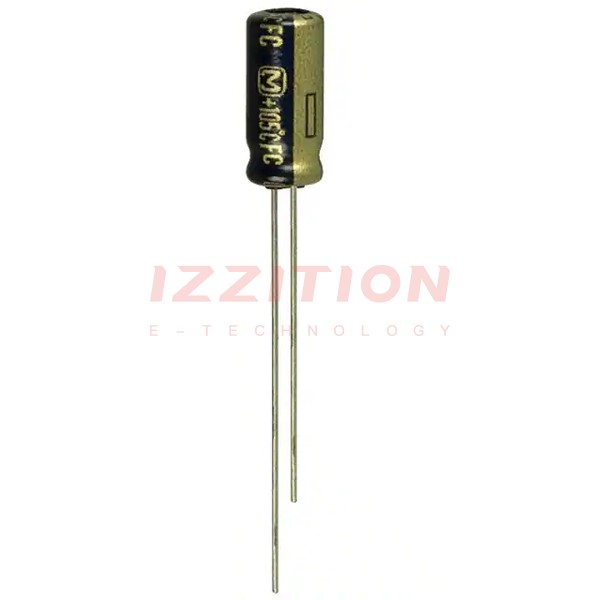

| Part Number | EEU-FC1J120 | EEU-FC1J220 | EEU-FC1J180 | EEU-FC1J820 | EEU-FC1J121 | EEU-FC1J122 | EEU-FC1J120H | EEU-FC1J120B | EEU-FC1H120 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Obsolete | Active | Active | Active | Active | Active | Active |
| Capacitance | 12 µF | 22 µF | 18 µF | 82 µF | 120 µF | 1200 µF | 12 µF | 12 µF | 12 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V | 63 V | 63 V | 63 V | 63 V | 63 V | 63 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 94.25 mA @ 120 Hz | 156 mA @ 120 Hz | 130 mA @ 120 Hz | 347.8 mA @ 120 Hz | 390 mA @ 120 Hz | 2.36 A @ 120 Hz | 94.25 mA @ 120 Hz | 94.25 mA @ 120 Hz | 87.75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 145 mA @ 100 kHz | 240 mA @ 100 kHz | 200 mA @ 100 kHz | 535 mA @ 100 kHz | 600 mA @ 100 kHz | 2.95 A @ 100 kHz | 145 mA @ 100 kHz | 145 mA @ 100 kHz | 135 mA @ 100 kHz |
| Impedance | 2 Ohms | 1 Ohms | 1.3 Ohms | 256 mOhms | 194 mOhms | 32 mOhms | 2 Ohms | 2 Ohms | 1.3 Ohms |
| Lead Spacing | 0.079" (2.00mm) | 0.098" (2.50mm) | 0.079" (2.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.098" (2.50mm) | 0.197" (5.00mm) | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.248" Dia (6.30mm) | 0.197" Dia (5.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.709" Dia (18.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.441" (11.20mm) | 0.591" (15.00mm) | 0.492" (12.50mm) | 0.630" (16.00mm) | 1.240" (31.50mm) | 0.472" (12.00mm) | 0.571" (14.50mm) | 0.472" (12.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
