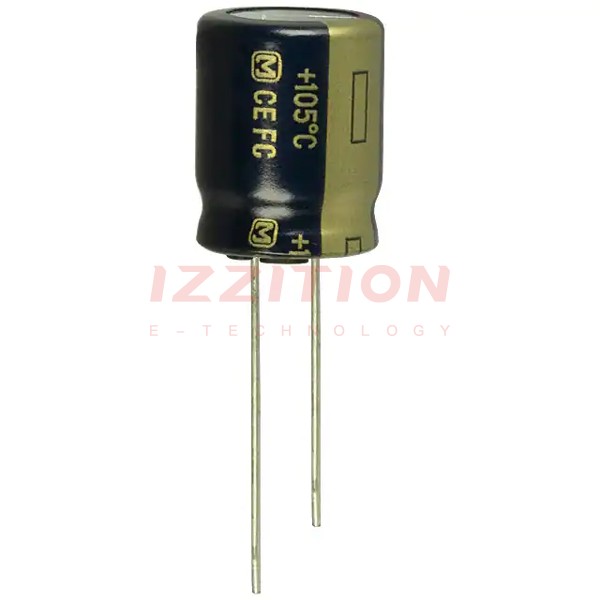

| Part Number | EEU-FC1H681 | EEU-FC1H681L | EEU-FC1J681 | EEU-FC1H681B | EEU-FC1E681 | EEU-FC1H680 |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 680 µF | 680 µF | 680 µF | 680 µF | 680 µF | 68 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 63 V | 50 V | 25 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 1.376 A @ 120 Hz | 1.661 A @ 120 Hz | 1.62 A @ 120 Hz | 1.376 A @ 120 Hz | 1.08 A @ 120 Hz | 315.3 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.835 A @ 100 kHz | 2.215 A @ 100 kHz | 2.16 A @ 100 kHz | 1.835 A @ 100 kHz | 1.22 A @ 100 kHz | 485 mA @ 100 kHz |
| Impedance | 48 mOhms | 40 mOhms | 50 mOhms | 48 mOhms | 52 mOhms | 234 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) | 1.181" (30.00mm) | 0.984" (25.00mm) | 0.866" (22.00mm) | 0.787" (20.00mm) | 0.453" (11.50mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
