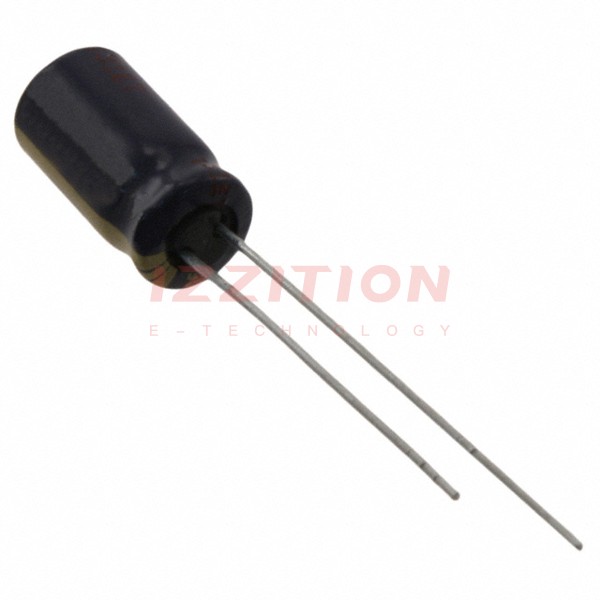

| Part Number | EEU-FC1H560 | EEU-FC1J560 | EEU-FC1H561 | EEU-FC1H560B | EEU-FC1H560H | EEU-FC1E560 |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete |
| Capacitance | 56 µF | 56 µF | 560 µF | 56 µF | 56 µF | 56 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 63 V | 50 V | 50 V | 50 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 234 mA @ 120 Hz | 263.3 mA @ 120 Hz | 1.374 A @ 120 Hz | 234 mA @ 120 Hz | 234 mA @ 120 Hz | 152.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 360 mA @ 100 kHz | 405 mA @ 100 kHz | 1.832 A @ 100 kHz | 360 mA @ 100 kHz | 360 mA @ 100 kHz | 235 mA @ 100 kHz |
| Impedance | 400 mOhms | 342 mOhms | 50 mOhms | 400 mOhms | 400 mOhms | 500 mOhms |
| Lead Spacing | 0.098" (2.50mm) | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.079" (2.00mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.492" Dia (12.50mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) | 0.453" (11.50mm) | 0.984" (25.00mm) | 0.728" (18.50mm) | 0.630" (16.00mm) | 0.591" (15.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
