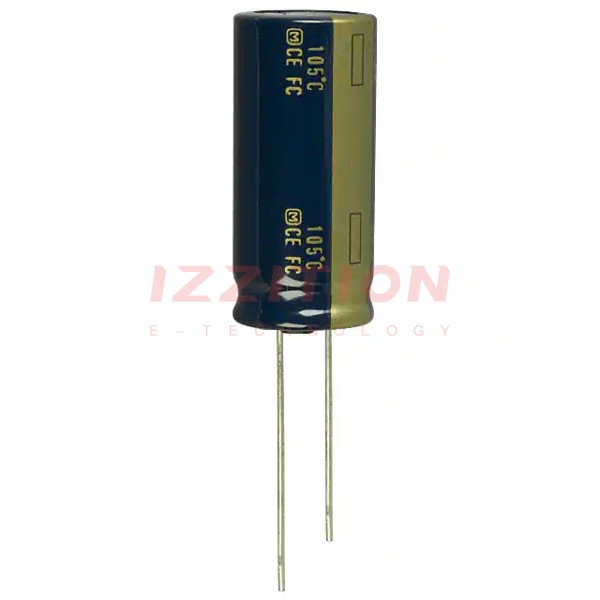

| Part Number | EEU-FC1H222 | EEU-FC1H2R2 | EEU-FC1H222C | EEU-FC1H222E | EEU-FC1E222 | EEU-FC1H122 | EEU-FC1H220 | EEU-FC1H221 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 2200 µF | 2.2 µF | 2200 µF | 2200 µF | 2200 µF | 1200 µF | 22 µF | 220 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 50 V | 50 V | 25 V | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 1000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 1000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 2.48 A @ 120 Hz | 29.25 mA @ 120 Hz | 2.48 A @ 120 Hz | 2.48 A @ 120 Hz | 2.008 A @ 120 Hz | 2.16 A @ 120 Hz | 100.8 mA @ 120 Hz | 669.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.1 A @ 100 kHz | 45 mA @ 100 kHz | 3.1 A @ 100 kHz | 3.1 A @ 100 kHz | 2.51 A @ 100 kHz | 2.7 A @ 100 kHz | 155 mA @ 100 kHz | 1.03 A @ 100 kHz |
| Impedance | 23 mOhms | 1.8 Ohms | 23 mOhms | 23 mOhms | 22 mOhms | 28 mOhms | 1.3 Ohms | 90 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.079" (2.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.079" (2.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.709" Dia (18.00mm) | 0.197" Dia (5.00mm) | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.197" Dia (5.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) | 0.472" (12.00mm) | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.378" (35.00mm) | 1.240" (31.50mm) | 0.472" (12.00mm) | 0.787" (20.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
