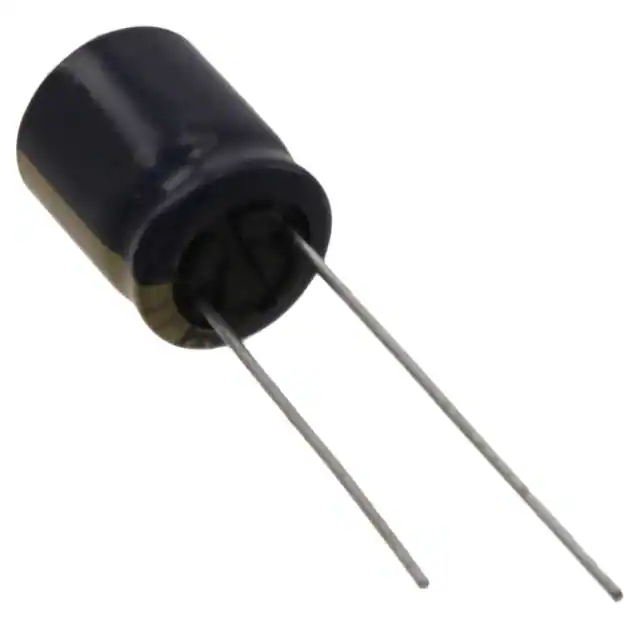

| Part Number | EEU-FC1H181B | EEU-FC1H181L | EEU-FC1H681B | EEU-FC1J181B | EEU-FC1E181B | EEU-FC1H101B | EEU-FC1H121B | EEU-FC1H151B | EEU-FC1H180B |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 180 µF | 180 µF | 680 µF | 180 µF | 180 µF | 100 µF | 120 µF | 150 µF | 18 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 50 V | 63 V | 25 V | 50 V | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 2000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 552.5 mA @ 120 Hz | 559 mA @ 120 Hz | 1.376 A @ 120 Hz | 575.3 mA @ 120 Hz | 360.8 mA @ 120 Hz | 399.75 mA @ 120 Hz | 399.8 mA @ 120 Hz | 552.5 mA @ 120 Hz | 100.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz | 860 mA @ 100 kHz | 1.835 A @ 100 kHz | 885 mA @ 100 kHz | 555 mA @ 100 kHz | 615 mA @ 100 kHz | 615 mA @ 100 kHz | 850 mA @ 100 kHz | 155 mA @ 100 kHz |
| Impedance | 119 mOhms | 120 mOhms | 48 mOhms | 147 mOhms | 117 mOhms | 162 mOhms | 162 mOhms | 119 mOhms | 1.3 Ohms |
| Lead Spacing | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.630" Dia (16.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) | 0.787" (20.00mm) | 0.866" (22.00mm) | 0.866" (22.00mm) | 0.650" (16.50mm) | 0.531" (13.50mm) | 0.531" (13.50mm) | 0.669" (17.00mm) | 0.571" (14.50mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
