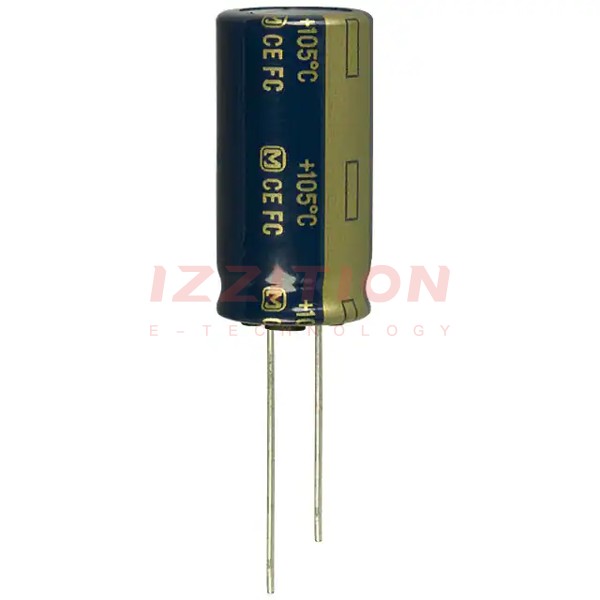

| Part Number | EEU-FC1H122 | EEU-FC1H122S | EEU-FC1H222 | EEU-FC1J122 | EEU-FC1H182 | EEU-FC1E122 | EEU-FC1H102 | EEU-FC1H120 | EEU-FC1H121 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1200 µF | 1200 µF | 2200 µF | 1200 µF | 1800 µF | 1200 µF | 1000 µF | 12 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 50 V | 63 V | 50 V | 25 V | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 1000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 2.16 A @ 120 Hz | 2.088 A @ 120 Hz | 2.48 A @ 120 Hz | 2.36 A @ 120 Hz | 2.4 A @ 120 Hz | 1.556 A @ 120 Hz | 1.676 A @ 120 Hz | 87.75 mA @ 120 Hz | 399.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.7 A @ 100 kHz | 2.61 A @ 100 kHz | 3.1 A @ 100 kHz | 2.95 A @ 100 kHz | 3 A @ 100 kHz | 1.945 A @ 100 kHz | 2.235 A @ 100 kHz | 135 mA @ 100 kHz | 615 mA @ 100 kHz |
| Impedance | 28 mOhms | 29 mOhms | 23 mOhms | 32 mOhms | 25 mOhms | 30 mOhms | 34 mOhms | 1.3 Ohms | 162 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.079" (2.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.197" Dia (5.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) | 0.984" (25.00mm) | 1.398" (35.50mm) | 1.240" (31.50mm) | 1.240" (31.50mm) | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.472" (12.00mm) | 0.492" (12.50mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
