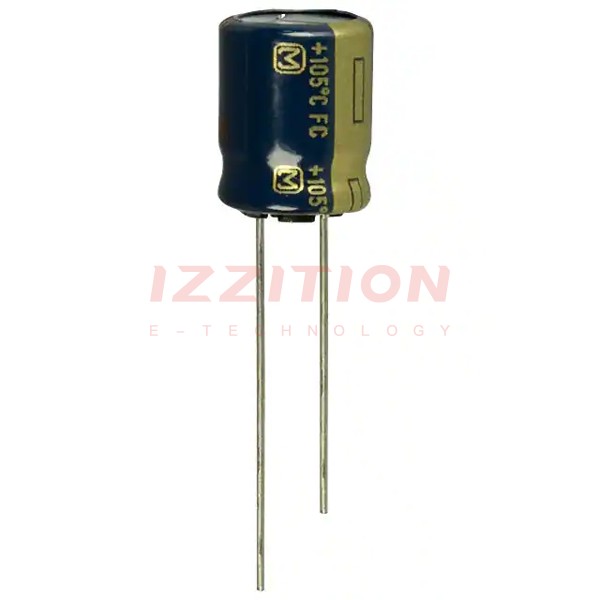

| Part Number | EEU-FC1H121 | EEU-FC1H121L | EEU-FC1H221 | EEU-FC1H122 | EEU-FC1H151 | EEU-FC1J121 | EEU-FC1H821 | EEU-FC1H121B | EEU-FC1E121 | EEU-FC1H101 | EEU-FC1H120 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active |
| Capacitance | 120 µF | 120 µF | 220 µF | 1200 µF | 150 µF | 120 µF | 820 µF | 120 µF | 120 µF | 100 µF | 12 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 50 V | 50 V | 50 V | 63 V | 50 V | 50 V | 25 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 2000 Hrs @ 105°C | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 1000 Hrs @ 105°C | 3000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 399.8 mA @ 120 Hz | 412.8 mA @ 120 Hz | 669.5 mA @ 120 Hz | 2.16 A @ 120 Hz | 552.5 mA @ 120 Hz | 390 mA @ 120 Hz | 1.815 A @ 120 Hz | 399.8 mA @ 120 Hz | 260 mA @ 120 Hz | 399.75 mA @ 120 Hz | 87.75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 615 mA @ 100 kHz | 635 mA @ 100 kHz | 1.03 A @ 100 kHz | 2.7 A @ 100 kHz | 850 mA @ 100 kHz | 600 mA @ 100 kHz | 2.42 A @ 100 kHz | 615 mA @ 100 kHz | 400 mA @ 100 kHz | 615 mA @ 100 kHz | 135 mA @ 100 kHz |
| Impedance | 162 mOhms | 155 mOhms | 90 mOhms | 28 mOhms | 119 mOhms | 194 mOhms | 42 mOhms | 162 mOhms | 250 mOhms | 162 mOhms | 1.3 Ohms |
| Lead Spacing | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.197" (5.00mm) | 0.079" (2.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.630" Dia (16.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.709" Dia (18.00mm) | 0.394" Dia (10.00mm) | 0.248" Dia (6.30mm) | 0.394" Dia (10.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) | 0.591" (15.00mm) | 0.787" (20.00mm) | 1.240" (31.50mm) | 0.630" (16.00mm) | 0.630" (16.00mm) | 0.787" (20.00mm) | 0.531" (13.50mm) | 0.591" (15.00mm) | 0.492" (12.50mm) | 0.472" (12.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
