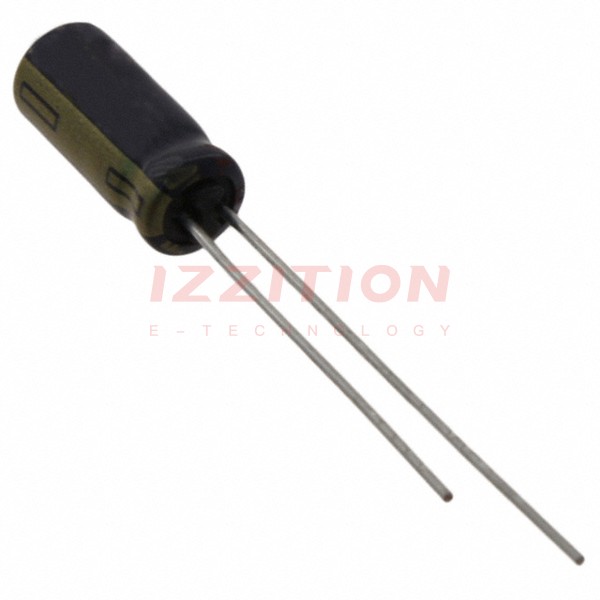

| Part Number | EEU-FC1H120B | EEU-FC1H220B | EEU-FC1H121B | EEU-FC1H120H | EEU-FC1H150B | EEU-FC1H180B | EEU-FC1J120B | EEU-FC1H1R0B | EEU-FC1H100B | EEU-FC1H120 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete | Obsolete | Active |
| Capacitance | 12 µF | 22 µF | 120 µF | 12 µF | 15 µF | 18 µF | 12 µF | 1 µF | 10 µF | 12 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 63 V | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 3000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 87.75 mA @ 120 Hz | 100.8 mA @ 120 Hz | 399.8 mA @ 120 Hz | 87.75 mA @ 120 Hz | 94.25 mA @ 120 Hz | 100.8 mA @ 120 Hz | 94.25 mA @ 120 Hz | 13 mA @ 120 Hz | 58.5 mA @ 120 Hz | 87.75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 135 mA @ 100 kHz | 155 mA @ 100 kHz | 615 mA @ 100 kHz | 135 mA @ 100 kHz | 145 mA @ 100 kHz | 155 mA @ 100 kHz | 145 mA @ 100 kHz | - | 90 mA @ 100 kHz | 135 mA @ 100 kHz |
| Impedance | 1.3 Ohms | 1.3 Ohms | 162 mOhms | 1.3 Ohms | 1.3 Ohms | 1.3 Ohms | 2 Ohms | 2.4 Ohms | 2.5 Ohms | 1.3 Ohms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.394" Dia (10.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.157" Dia (4.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) | 0.571" (14.50mm) | 0.531" (13.50mm) | 0.472" (12.00mm) | 0.571" (14.50mm) | 0.571" (14.50mm) | 0.571" (14.50mm) | 0.571" (14.50mm) | 0.472" (12.00mm) | 0.472" (12.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
