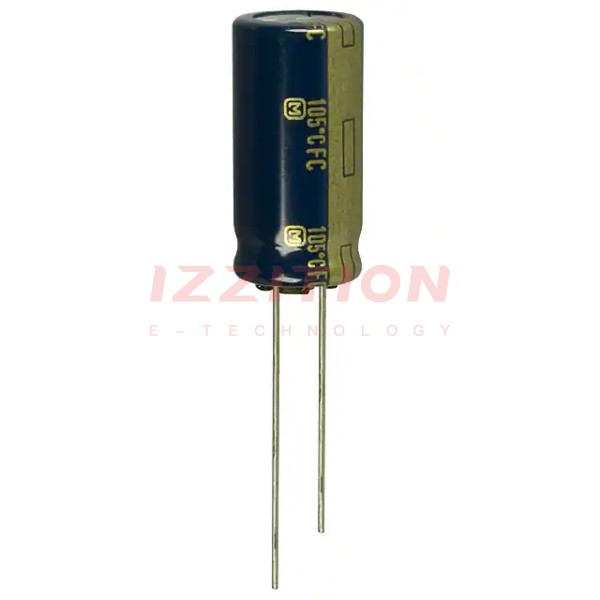

| Part Number | EEU-FC1E561 | EEU-FC1E561S | EEU-FC1H561 | EEU-FC1E562 | EEU-FC1E561B | EEU-FC1C561 | EEU-FC1E560 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete |
| Capacitance | 560 µF | 560 µF | 560 µF | 5600 µF | 560 µF | 560 µF | 56 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 50 V | 25 V | 25 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 915 mA @ 120 Hz | 903.8 mA @ 120 Hz | 1.374 A @ 120 Hz | 3.175 A @ 120 Hz | 915 mA @ 120 Hz | 787.5 mA @ 120 Hz | 152.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.22 A @ 100 kHz | 1.205 A @ 100 kHz | 1.832 A @ 100 kHz | 3.735 A @ 100 kHz | 1.22 A @ 100 kHz | 1.05 A @ 100 kHz | 235 mA @ 100 kHz |
| Impedance | 52 mOhms | 65 mOhms | 50 mOhms | 14 mOhms | 52 mOhms | 68 mOhms | 500 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.079" (2.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.709" Dia (18.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) | 0.591" (15.00mm) | 0.984" (25.00mm) | 1.575" (40.00mm) | 0.866" (22.00mm) | 0.630" (16.00mm) | 0.591" (15.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
