EEU-FC1E471LB
  • Share:

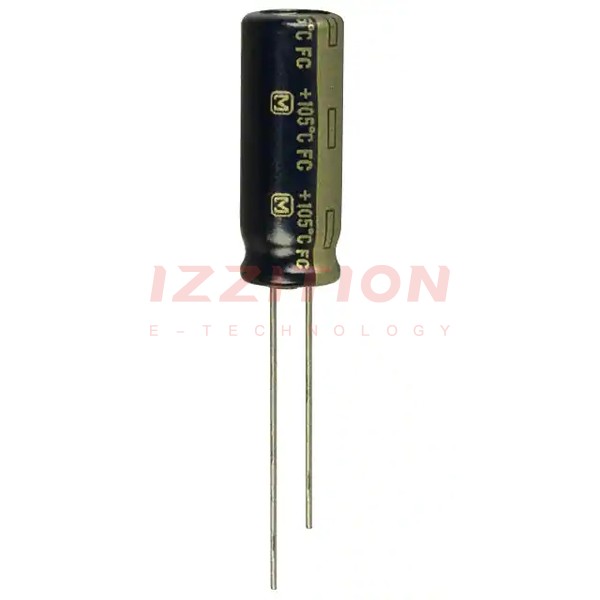

Panasonic Electronic Components EEU-FC1E471LB

Manufacturer No:
EEU-FC1E471LB
Manufacturer:
Panasonic Electronic Components
Package:
Cut Tape (CT)
Datasheet:
EEU-FC1E471LB Datasheet
ECAD Model:
-
Description:
CAP ALUM 470UF 20% 25V RADIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:470 µF
Tolerance:±20%
Voltage - Rated:25 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:2000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Polarization:Polar
Ratings:AEC-Q200
Applications:Automotive
Ripple Current @ Low Frequency:746.3 mA @ 120 Hz
Ripple Current @ High Frequency:995 mA @ 100 kHz
Impedance:65 mOhms
Lead Spacing:0.197" (5.00mm)
Size / Dimension:0.315" Dia (8.00mm)
Height - Seated (Max):1.024" (26.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

$0.81
585

Please send RFQ , we will respond immediately.

Similar Products

Part Number EEU-FC1E471LB EEU-FC1E471LC   EEU-FC1E471LJ   EEU-FC1C471LB   EEU-FC1E471B   EEU-FC1E471L
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Active Active Active Active Active Active
Capacitance 470 µF 470 µF 470 µF 470 µF 470 µF 470 µF
Tolerance ±20% ±20% ±20% ±20% ±20% ±20%
Voltage - Rated 25 V 25 V 25 V 16 V 25 V 25 V
ESR (Equivalent Series Resistance) - - - - - -
Lifetime @ Temp. 2000 Hrs @ 105°C 2000 Hrs @ 105°C 2000 Hrs @ 105°C 2000 Hrs @ 105°C 3000 Hrs @ 105°C 2000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C
Polarization Polar Polar Polar Polar Polar Polar
Ratings AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200
Applications Automotive Automotive Automotive Automotive Automotive Automotive
Ripple Current @ Low Frequency 746.3 mA @ 120 Hz 746.3 mA @ 120 Hz 746.3 mA @ 120 Hz 547.5 mA @ 120 Hz 787.5 mA @ 120 Hz 746.3 mA @ 120 Hz
Ripple Current @ High Frequency 995 mA @ 100 kHz - - 730 mA @ 100 kHz 1.05 A @ 100 kHz 995 mA @ 100 kHz
Impedance 65 mOhms 65 mOhms 65 mOhms 85 mOhms 68 mOhms 65 mOhms
Lead Spacing 0.197" (5.00mm) - - 0.197" (5.00mm) 0.197" (5.00mm) 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm) 0.315" Dia (8.00mm) 0.315" Dia (8.00mm) 0.315" Dia (8.00mm) 0.394" Dia (10.00mm) 0.315" Dia (8.00mm)
Height - Seated (Max) 1.024" (26.00mm) 0.866" (22.00mm) 0.866" (22.00mm) 0.807" (20.50mm) 0.669" (17.00mm) 0.787" (20.00mm)
Surface Mount Land Size - - - - - -
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Package / Case Radial, Can Radial, Can Radial, Can Radial, Can Radial, Can Radial, Can
