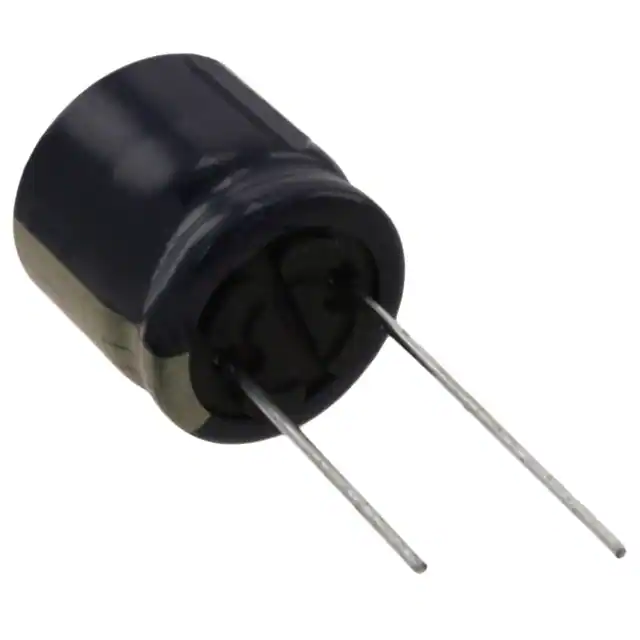

| Part Number | EEU-FC1E272 | EEU-FC1E472 | EEU-FC1E272B | EEU-FC1C272 | EEU-FC1E222 | EEU-FC1E270 | EEU-FC1E271 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active |
| Capacitance | 2700 µF | 4700 µF | 2700 µF | 2700 µF | 2200 µF | 27 µF | 270 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 25 V | 16 V | 25 V | 25 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 1000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 2.172 A @ 120 Hz | 3.128 A @ 120 Hz | 2.172 A @ 120 Hz | 1.874 A @ 120 Hz | 2.008 A @ 120 Hz | 78 mA @ 120 Hz | 490.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.555 A @ 100 kHz | 3.68 A @ 100 kHz | 2.555 mA @ 100 kHz | 2.205 A @ 100 kHz | 2.51 A @ 100 kHz | 120 mA @ 100 kHz | 755 mA @ 100 kHz |
| Impedance | 22 mOhms | 15 mOhms | 22 mOhms | 29 mOhms | 22 mOhms | 1.3 Ohms | 90 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.059" (1.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) | 0.157" Dia (4.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) | 1.398" (35.50mm) | 1.063" (27.00mm) | 0.787" (20.00mm) | 1.378" (35.00mm) | 0.433" (11.00mm) | 0.492" (12.50mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
