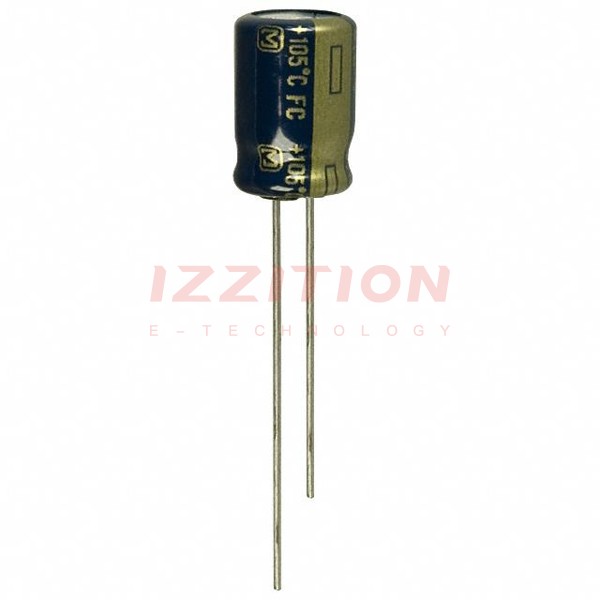

| Part Number | EEU-FC1E221 | EEU-FC1E222 | EEU-FC1E271 | EEU-FC1E821 | EEU-FC1E221B | EEU-FC1H221 | EEU-FC1C221 | EEU-FC1E121 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Capacitance | 220 µF | 2200 µF | 270 µF | 820 µF | 220 µF | 220 µF | 220 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 25 V | 25 V | 25 V | 50 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 2000 Hrs @ 105°C | 3000 Hrs @ 105°C | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 360.8 mA @ 120 Hz | 2.008 A @ 120 Hz | 490.8 mA @ 120 Hz | 1.08 A @ 120 Hz | 360.8 mA @ 120 Hz | 669.5 mA @ 120 Hz | 360.8 mA @ 120 Hz | 260 mA @ 120 Hz |
| Ripple Current @ High Frequency | 555 mA @ 100 kHz | 2.51 A @ 100 kHz | 755 mA @ 100 kHz | 1.44 A @ 100 kHz | 555 mA @ 100 kHz | 1.03 A @ 100 kHz | 555 mA @ 100 kHz | 400 mA @ 100 kHz |
| Impedance | 117 mOhms | 22 mOhms | 90 mOhms | 45 mOhms | 117 mOhms | 90 mOhms | 117 mOhms | 250 mOhms |
| Lead Spacing | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.492" Dia (12.50mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.453" (11.50mm) | 1.378" (35.00mm) | 0.492" (12.50mm) | 0.984" (25.00mm) | 0.650" (16.50mm) | 0.787" (20.00mm) | 0.453" (11.50mm) | 0.591" (15.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
