Please send RFQ , we will respond immediately.

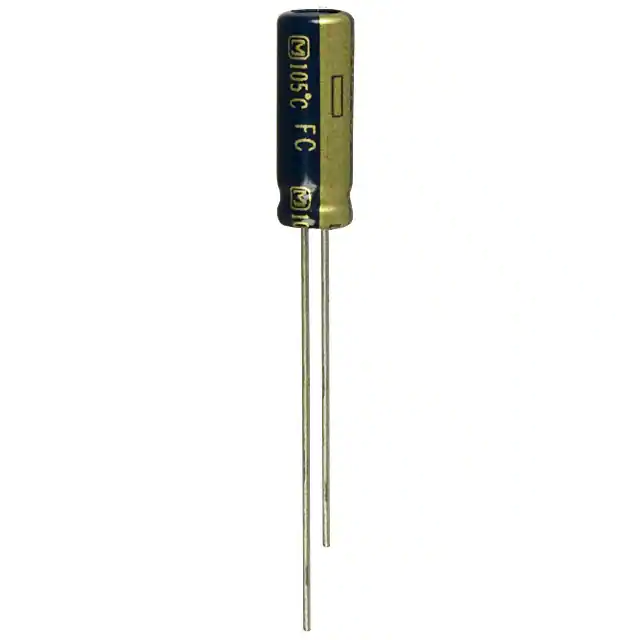

| Part Number | EEU-FC1C820 | EEU-FC1C821 | EEU-FC1E820 | EEU-FC1C822 | EEU-FC1A820 |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Active | Active | Active | Active |
| Capacitance | 82 µF | 820 µF | 82 µF | 8200 µF | 82 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V | 25 V | 16 V | 10 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 3000 Hrs @ 105°C | 1000 Hrs @ 105°C | 5000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 152.8 mA @ 120 Hz | 915 mA @ 120 Hz | 188.5 mA @ 120 Hz | 3.128 A @ 120 Hz | 113.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 235 mA @ 100 kHz | 1.22 A @ 100 kHz | 290 mA @ 100 kHz | 3.68 A @ 100 kHz | 175 mA @ 100 kHz |
| Impedance | 500 mOhms | 52 mOhms | 350 mOhms | 15 mOhms | 800 mOhms |
| Lead Spacing | 0.079" (2.00mm) | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.295" (7.50mm) | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.394" Dia (10.00mm) | 0.248" Dia (6.30mm) | 0.709" Dia (18.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) | 0.787" (20.00mm) | 0.441" (11.20mm) | 1.398" (35.50mm) | 0.472" (12.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
