Please send RFQ , we will respond immediately.

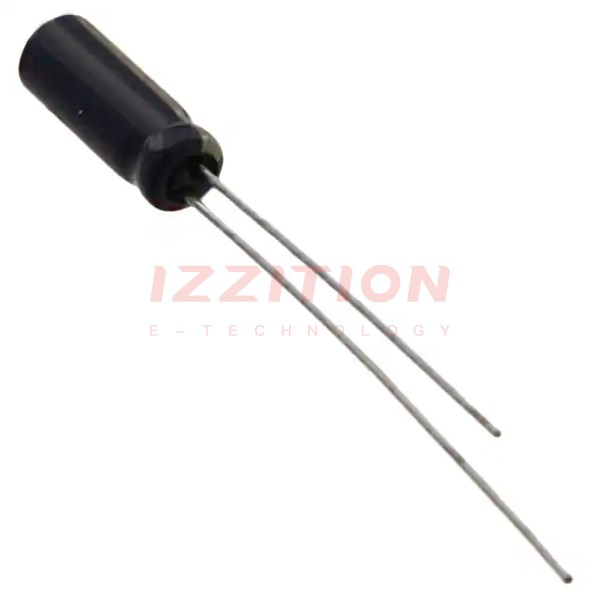

| Part Number | EEU-FC1C390B | EEU-FC1E390B | EEU-FC1C391B | EEU-FC1C392B | EEU-FC1C390H | EEU-FC1C390 |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Active | Active | Active | Obsolete | Obsolete |
| Capacitance | 39 µF | 39 µF | 390 µF | 3900 µF | 39 µF | 39 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 25 V | 16 V | 16 V | 16 V | 16 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 78 mA @ 120 Hz | 113.8 mA @ 120 Hz | 566.3 mA @ 120 Hz | 2.172 A @ 120 Hz | 78 mA @ 120 Hz | 78 mA @ 120 Hz |
| Ripple Current @ High Frequency | 120 mA @ 100 kHz | 175 mA @ 100 kHz | 755 mA @ 100 kHz | 2.555 A @ 100 kHz | 120 mA @ 100 kHz | 120 mA @ 100 kHz |
| Impedance | 1.3 Ohms | 800 mOhms | 90 mOhms | 22 mOhms | 1.3 Ohms | 1.3 Ohms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.098" (2.50mm) | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) | 0.197" Dia (5.00mm) | 0.394" Dia (10.00mm) | 0.630" Dia (16.00mm) | 0.157" Dia (4.00mm) | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.571" (14.50mm) | 0.531" (13.50mm) | 1.063" (27.00mm) | 0.472" (12.00mm) | 0.433" (11.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
