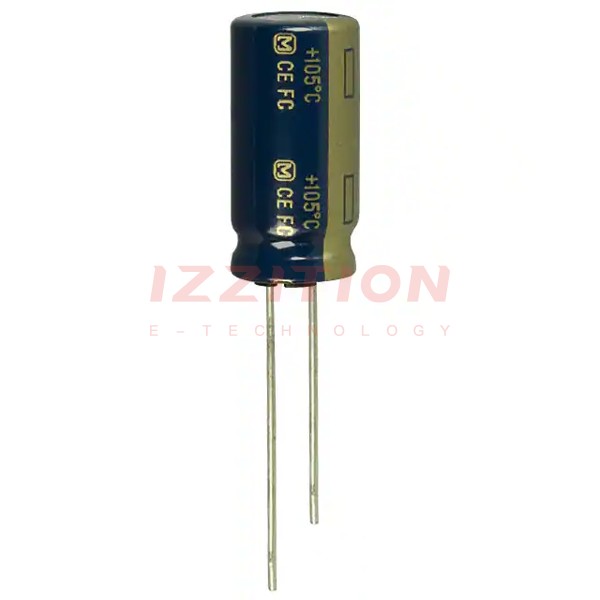

| Part Number | EEU-FC1C182 | EEU-FC1C182S | EEU-FC1E182 | EEU-FC1C682 | EEU-FC1C182B | EEU-FC1A182 | EEU-FC1C102 | EEU-FC1C122 | EEU-FC1C152 | EEU-FC1C181 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Capacitance | 1800 µF | 1800 µF | 1800 µF | 6800 µF | 1800 µF | 1800 µF | 1000 µF | 1200 µF | 1500 µF | 180 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V | 25 V | 16 V | 16 V | 10 V | 16 V | 16 V | 16 V | 16 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 1.556 A @ 120 Hz | 1.6 A @ 120 Hz | 1.764 A @ 120 Hz | 2.856 A @ 120 Hz | 1.556 A @ 120 Hz | 1.324 A @ 120 Hz | 1.08 A @ 120 Hz | 1.152 A @ 120 Hz | 1.324 A @ 120 Hz | 260 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.945 A @ 100 kHz | 2 A @ 100 kHz | 2.205 A @ 100 kHz | 3.36 A @ 100 kHz | 1.945 A @ 100 kHz | 1.655 A @ 100 kHz | 1.44 A @ 100 kHz | 1.44 A @ 100 kHz | 1.655 A @ 100 kHz | 400 mA @ 100 kHz |
| Impedance | 30 mOhms | 38 mOhms | 29 mOhms | 15 mOhms | 30 mOhms | 38 mOhms | 45 mOhms | 45 mOhms | 38 mOhms | 250 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.709" Dia (18.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.492" Dia (12.50mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.984" (25.00mm) | 0.591" (15.00mm) | 0.787" (20.00mm) | 1.575" (40.00mm) | 1.063" (27.00mm) | 0.787" (20.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.787" (20.00mm) | 0.591" (15.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
