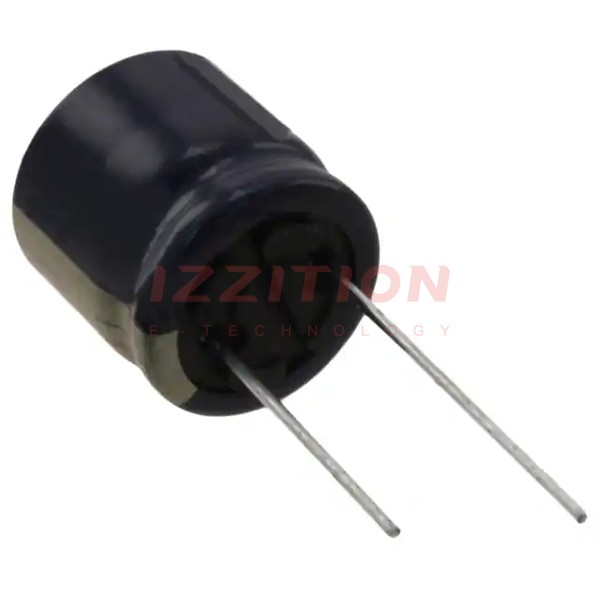

| Part Number | EEU-FC0J472SB | EEU-FC0J272SB | EEU-FC0J472S |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 4700 µF | 2700 µF | 4700 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 1.874 A @ 120 Hz | 1.437 A @ 120 Hz | 1.874 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.205 A @ 100 kHz | 1.69 A @ 100 kHz | 2.205 A @ 100 kHz |
| Impedance | 29 mOhms | 43 mOhms | 29 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) | 0.650" (16.50mm) | 0.787" (20.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
