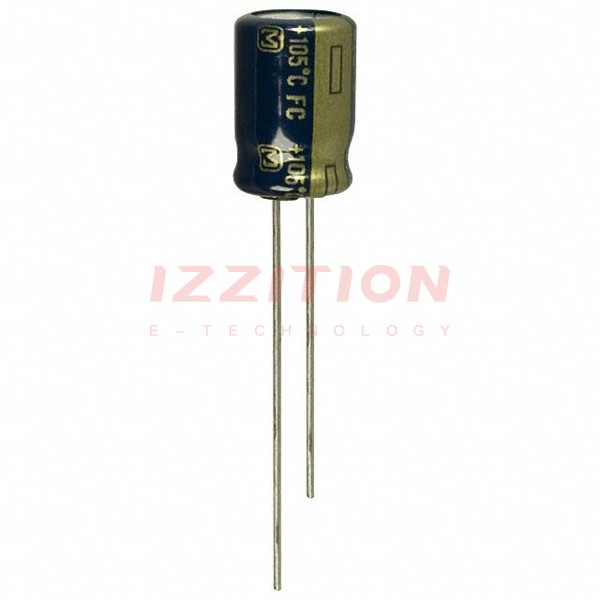

| Part Number | EEU-FC0J391 | EEU-FC0J392 | EEU-FC0J391B | EEU-FC0J331 |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Obsolete |
| Capacitance | 390 µF | 3900 µF | 390 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 416.25 mA @ 120 Hz | 1.653 A @ 120 Hz | 416.25 mA @ 120 Hz | 260 mA @ 120 Hz |
| Ripple Current @ High Frequency | 555 mA @ 100 kHz | 1.945 A @ 100 kHz | 555 mA @ 100 kHz | 400 mA @ 100 kHz |
| Impedance | 117 mOhms | 30 mOhms | 117 mOhms | 250 mOhms |
| Lead Spacing | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.492" Dia (12.50mm) | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.453" (11.50mm) | 0.984" (25.00mm) | 0.650" (16.50mm) | 0.591" (15.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
