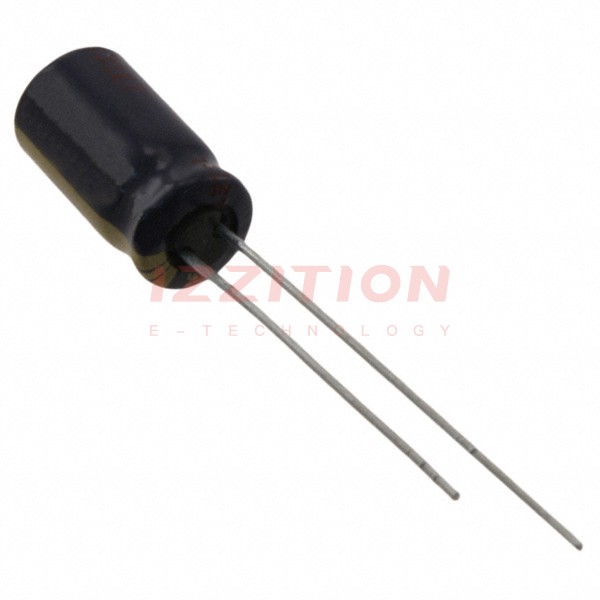

| Part Number | EEU-FC0J331B | EEU-FC0J331S | EEU-FC0J331SB | EEU-FC0J391B | EEU-FC0J332B | EEU-FC0J331H | EEU-FC0J331 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Active | Active | Active | Active | Obsolete | Obsolete |
| Capacitance | 330 µF | 330 µF | 330 µF | 390 µF | 3300 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 260 mA @ 120 Hz | 188.5 mA @ 120 Hz | 188.5 mA @ 120 Hz | 416.25 mA @ 120 Hz | 1.407 A @ 120 Hz | 260 mA @ 120 Hz | 260 mA @ 120 Hz |
| Ripple Current @ High Frequency | 400 mA @ 100 kHz | 290 mA @ 100 kHz | 290 mA @ 100 kHz | 555 mA @ 100 kHz | 1.655 A @ 100 kHz | 400 mA @ 100 kHz | 400 mA @ 100 kHz |
| Impedance | 250 mOhms | 350 mOhms | 350 mOhms | 117 mOhms | 38 mOhms | 250 mOhms | 250 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.492" Dia (12.50mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.728" (18.50mm) | 0.441" (11.20mm) | 0.579" (14.70mm) | 0.650" (16.50mm) | 0.866" (22.00mm) | 0.630" (16.00mm) | 0.591" (15.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
