Please send RFQ , we will respond immediately.

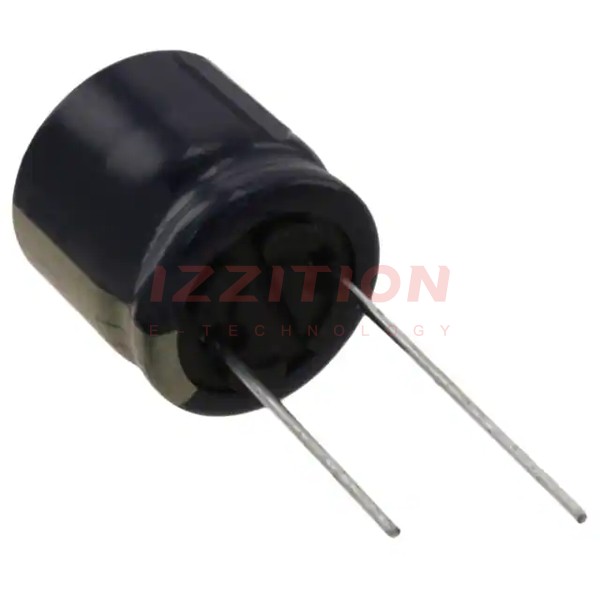

| Part Number | EEU-FC0J123L | EEU-FC0J122L | EEU-FC0J123 |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 12000 µF | 1200 µF | 12000 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 2.856 A @ 120 Hz | 604 mA @ 120 Hz | 3.09 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.36 A @ 100 kHz | 995 mA @ 100 kHz | 3.635 A @ 100 kHz |
| Impedance | 15 mOhms | 65 mOhms | 16 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.138" (3.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.315" Dia (8.00mm) | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) | 0.787" (20.00mm) | 1.240" (31.50mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
