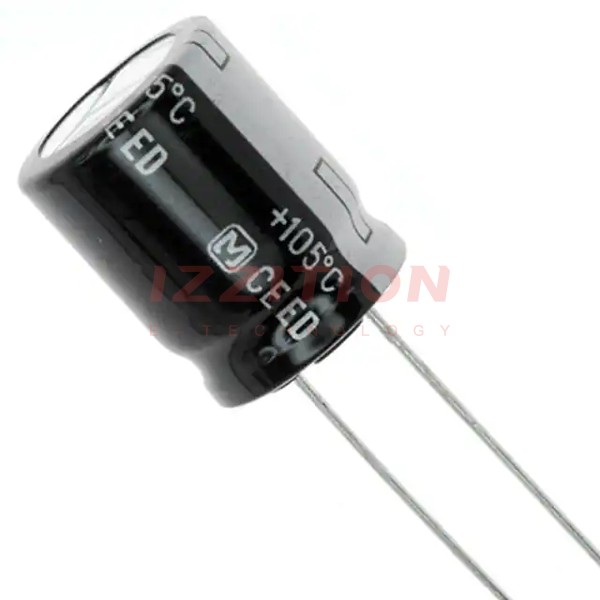

| Part Number | EEU-ED2E820 | EEU-ED2G820 | EEU-ED2E820S | EEU-EE2E820 | EEU-ED2E820B | EEU-ED2C820 | EEU-ED2E220 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 82 µF | 82 µF | 82 µF | 82 µF | 82 µF | 82 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 250 V | 400 V | 250 V | 250 V | 250 V | 160 V | 250 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 8000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 480 mA @ 120 Hz | 600 mA @ 120 Hz | 480 mA @ 120 Hz | 588 mA @ 120 Hz | 480 mA @ 120 Hz | 424 mA @ 120 Hz | 224 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz | 1.5 A @ 100 kHz | 1.2 A @ 100 kHz | 1.68 A @ 100 kHz | 1.2 A @ 100 kHz | 1.06 A @ 100 kHz | 560 mA @ 100 kHz |
| Impedance | - | - | - | - | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) | 1.575" (40.00mm) | 0.787" (20.00mm) | 1.063" (27.00mm) | 1.063" (27.00mm) | 0.984" (25.00mm) | 0.787" (20.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
