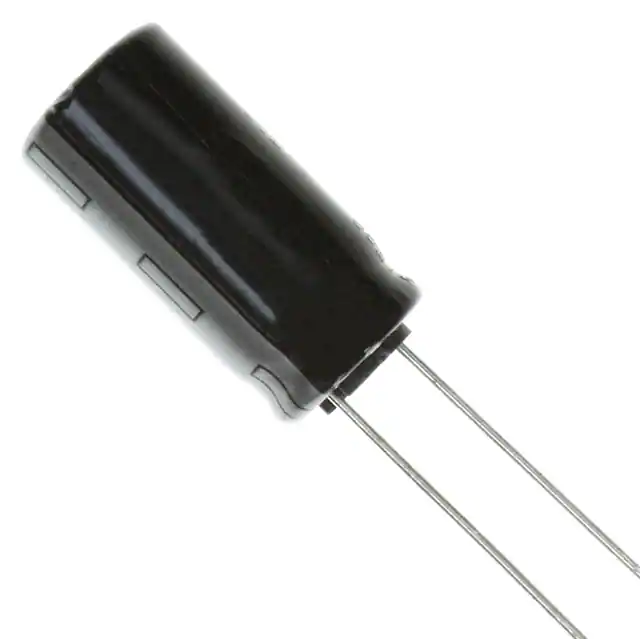

| Part Number | EEU-ED2C220 | EEU-ED2G220 | EEU-ED2C221 | EEU-ED2C220B | EEU-ED2V220 | EEU-ED2D220 | EEU-ED2E220 | EEU-EE2C220 | EEU-ED2C820 | EEU-EB2C220 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 22 µF | 22 µF | 220 µF | 22 µF | 22 µF | 22 µF | 22 µF | 22 µF | 82 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 160 V | 400 V | 160 V | 160 V | 350 V | 200 V | 250 V | 160 V | 160 V | 160 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 8000 Hrs @ 105°C | 10000 Hrs @ 105°C | 8000 Hrs @ 105°C | 8000 Hrs @ 105°C | 8000 Hrs @ 105°C | 10000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz | 200 mA @ 120 Hz | 765 mA @ 120 Hz | 200 mA @ 120 Hz | 192 mA @ 120 Hz | 240 mA @ 120 Hz | 224 mA @ 120 Hz | 245 mA @ 120 Hz | 424 mA @ 120 Hz | 258.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz | 500 mA @ 100 kHz | 1.7 A @ 100 kHz | 500 mA @ 100 kHz | 480 mA @ 100 kHz | 600 mA @ 100 kHz | 560 mA @ 100 kHz | 700 mA @ 100 kHz | 1.06 A @ 100 kHz | 470 mA @ 100 kHz |
| Impedance | - | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.394" Dia (10.00mm) | 0.492" Dia (12.50mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.492" Dia (12.50mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) | 0.984" (25.00mm) | 1.240" (31.50mm) | 0.866" (22.00mm) | 0.787" (20.00mm) | 0.787" (20.00mm) | 0.787" (20.00mm) | 0.866" (22.00mm) | 0.984" (25.00mm) | 0.866" (22.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
