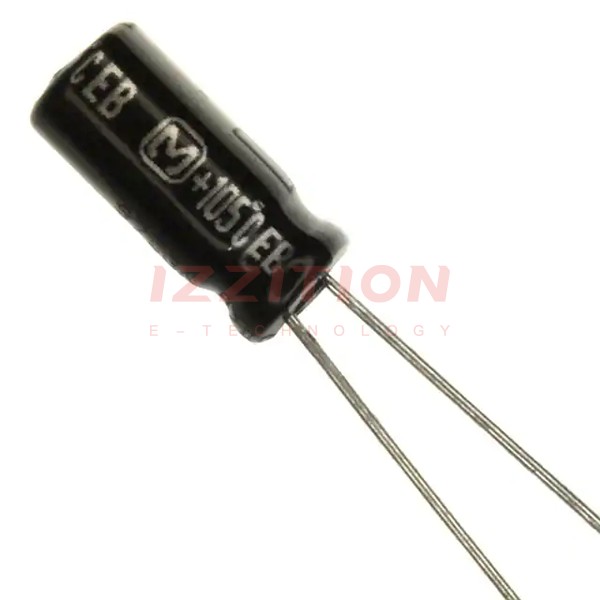

| Part Number | EEU-EB1HR47S | EEU-EB1JR47S | EEU-EB1HR47SB | EEU-EB1HR47SH |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.47 µF | 0.47 µF | 0.47 µF | 0.47 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 63 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 4 mA @ 120 Hz | 4.5 mA @ 120 Hz | 4 mA @ 120 Hz | 4 mA @ 120 Hz |
| Ripple Current @ High Frequency | 6.6 mA @ 100 kHz | 7.425 mA @ 100 kHz | 6.6 mA @ 100 kHz | 6.6 mA @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.197" (5.00mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
