Please send RFQ , we will respond immediately.

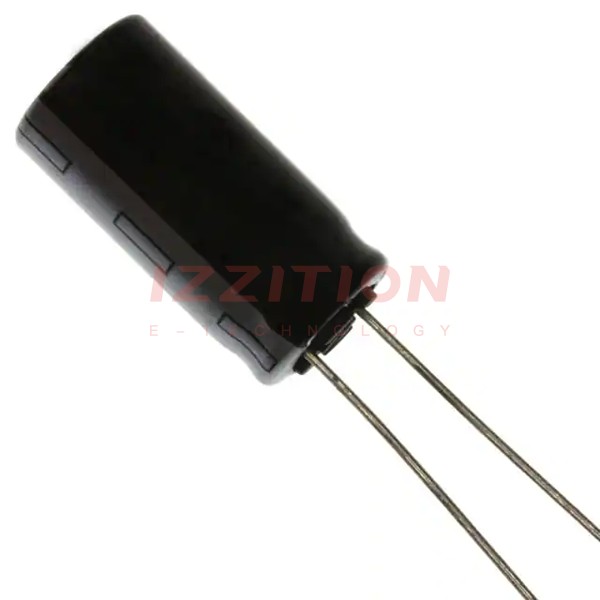

| Part Number | EEU-EB1H331B | EEU-EB1V331B | EEU-EB1J331B | EEU-EB1E331B | EEU-EB1H331 |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 330 µF | 330 µF | 330 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 35 V | 63 V | 25 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 293 mA @ 120 Hz | 278 mA @ 120 Hz | 381 mA @ 120 Hz | 255 mA @ 120 Hz | 293 mA @ 120 Hz |
| Ripple Current @ High Frequency | 380.9 mA @ 100 kHz | 361.4 mA @ 100 kHz | 495.3 mA @ 100 kHz | 331.5 mA @ 100 kHz | 380.9 mA @ 100 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.492" Dia (12.50mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) | 0.669" (17.00mm) | 0.866" (22.00mm) | 0.630" (16.00mm) | 0.866" (22.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
