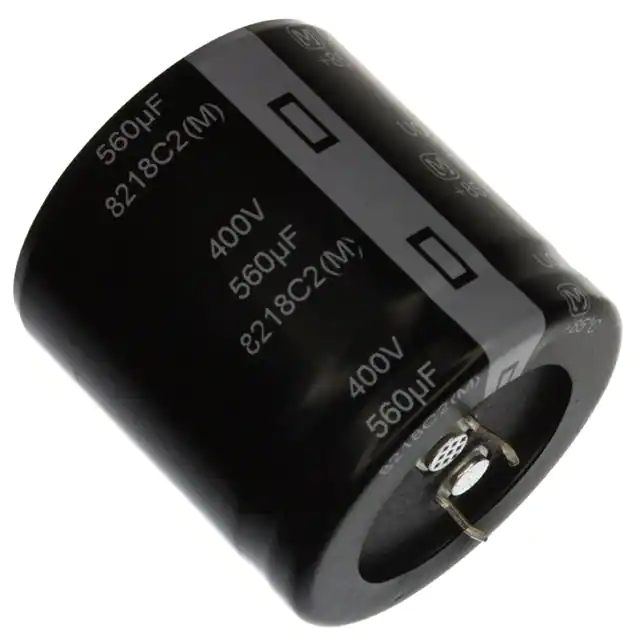

| Part Number | EET-UQ2S561EA | EET-UQ2V561EA | EET-UQ2S561LA | EET-UQ2G561EA | EET-UQ2S561DA |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 560 µF | 560 µF | 560 µF | 560 µF | 560 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 420 V | 350 V | 420 V | 400 V | 420 V |
| ESR (Equivalent Series Resistance) | 355mOhm @ 120Hz | 355mOhm @ 120Hz | 355mOhm @ 120Hz | 355mOhm @ 120Hz | 355mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.74 A @ 120 Hz | 2.6 A @ 120 Hz | 2.82 A @ 120 Hz | 2.69 A @ 120 Hz | 2.74 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.836 A @ 10 kHz | 3.64 A @ 10 kHz | 3.948 A @ 10 kHz | 3.766 A @ 10 kHz | 3.836 A @ 10 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | - | - | 0.394" (10.00mm) | - | - |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) | 1.181" (30.00mm) | 1.575" (40.00mm) | 1.378" (35.00mm) | 1.772" (45.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
