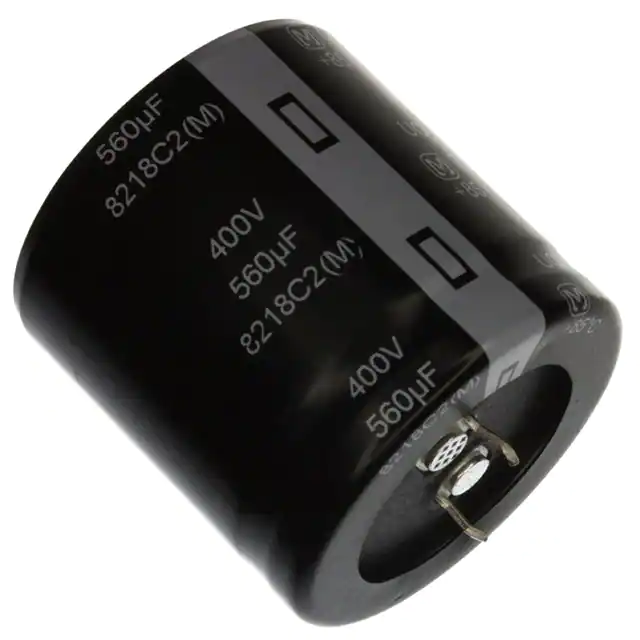

| Part Number | EET-UQ2E821LA | EET-UQ2G821LA | EET-UQ2S821LA | EET-UQ2E821BA | EET-UQ2E821CA | EET-UQ2E821DA | EET-UQ2E821EA | EET-UQ2E821HA | EET-UQ2E821JA | EET-UQ2E821KA |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 820 µF | 820 µF | 820 µF | 820 µF | 820 µF | 820 µF | 820 µF | 820 µF | 820 µF | 820 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 250 V | 400 V | 420 V | 250 V | 250 V | 250 V | 250 V | 250 V | 250 V | 250 V |
| ESR (Equivalent Series Resistance) | 243mOhm @ 120Hz | 243mOhm @ 120Hz | 243mOhm @ 120Hz | 243mOhm @ 120Hz | 243mOhm @ 120Hz | 243mOhm @ 120Hz | 243mOhm @ 120Hz | 243mOhm @ 120Hz | 243mOhm @ 120Hz | 243mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.77 A @ 120 Hz | 3.25 A @ 120 Hz | 3.3 A @ 120 Hz | 2.77 A @ 120 Hz | 2.77 A @ 120 Hz | 2.77 A @ 120 Hz | 2.77 A @ 120 Hz | 2.77 A @ 120 Hz | 2.77 A @ 120 Hz | 2.77 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.878 A @ 10 kHz | 4.55 A @ 10 kHz | 4.62 A @ 10 kHz | 3.878 A @ 10 kHz | 3.878 A @ 10 kHz | 3.878 A @ 10 kHz | 3.878 A @ 10 kHz | 3.878 A @ 10 kHz | 3.878 A @ 10 kHz | 3.878 A @ 10 kHz |
| Impedance | - | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | - | - | - | - | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) | 1.181" Dia (30.00mm) | 1.378" Dia (35.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) | 1.969" (50.00mm) | 1.969" (50.00mm) | 1.969" (50.00mm) | 1.575" (40.00mm) | 1.181" (30.00mm) | 0.984" (25.00mm) | 1.969" (50.00mm) | 1.575" (40.00mm) | 1.181" (30.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
