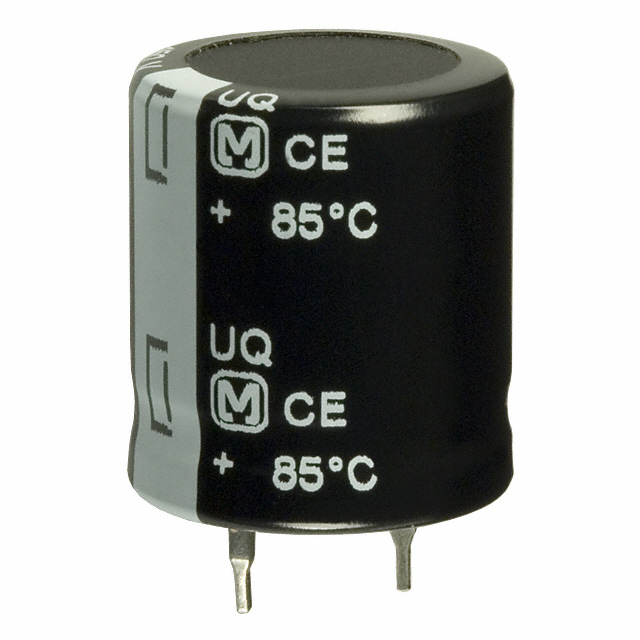

| Part Number | EET-UQ2E152KA | EET-UQ2E152LA | EET-UQ2C152KA | EET-UQ2D152KA | EET-UQ2E102KA | EET-UQ2E122KA | EET-UQ2E152DA | EET-UQ2E152EA |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1500 µF | 1500 µF | 1500 µF | 1500 µF | 1000 µF | 1200 µF | 1500 µF | 1500 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 250 V | 250 V | 160 V | 200 V | 250 V | 250 V | 250 V | 250 V |
| ESR (Equivalent Series Resistance) | 133mOhm @ 120Hz | 133mOhm @ 120Hz | 133mOhm @ 120Hz | 144mOhm @ 120Hz | 199mOhm @ 120Hz | 166mOhm @ 120Hz | 133mOhm @ 120Hz | 133mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 4.04 A @ 120 Hz | 4.04 A @ 120 Hz | 3.73 A @ 120 Hz | 3.87 A @ 120 Hz | 3.32 A @ 120 Hz | 3.53 A @ 120 Hz | 4.04 A @ 120 Hz | 4.04 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.656 A @ 10 kHz | 5.656 A @ 10 kHz | 5.222 A @ 10 kHz | 5.418 A @ 10 kHz | 4.648 A @ 10 kHz | 4.942 A @ 10 kHz | 5.656 A @ 10 kHz | 5.656 A @ 10 kHz |
| Impedance | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | - | - |
| Size / Dimension | 1.181" Dia (30.00mm) | 1.378" Dia (35.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) | 1.575" (40.00mm) | 1.181" (30.00mm) | 1.378" (35.00mm) | 1.378" (35.00mm) | 1.575" (40.00mm) | 1.969" (50.00mm) | 1.575" (40.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
