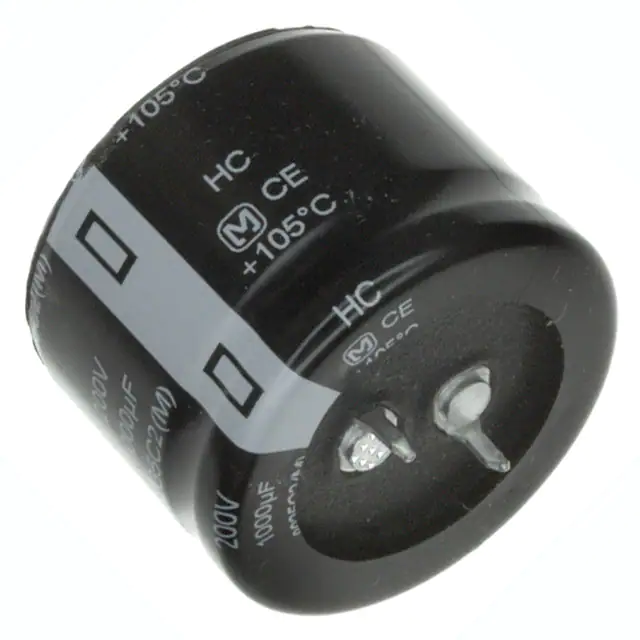

| Part Number | EET-HC2W471EA | EET-HC2W471LA | EET-HC2V471EA | EET-HC2W271EA |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 470 µF | 470 µF | 470 µF | 270 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 450 V | 450 V | 350 V | 450 V |
| ESR (Equivalent Series Resistance) | 388mOhm @ 120Hz | 388mOhm @ 120Hz | 353mOhm @ 120Hz | 675mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.74 A @ 120 Hz | 1.74 A @ 120 Hz | 1.4 A @ 120 Hz | 1.19 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.44 A @ 10 kHz | 2.436 A @ 10 kHz | 1.96 A @ 10 kHz | 1.67 A @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) | 1.850" (47.00mm) | 1.260" (32.00mm) | 1.260" (32.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
