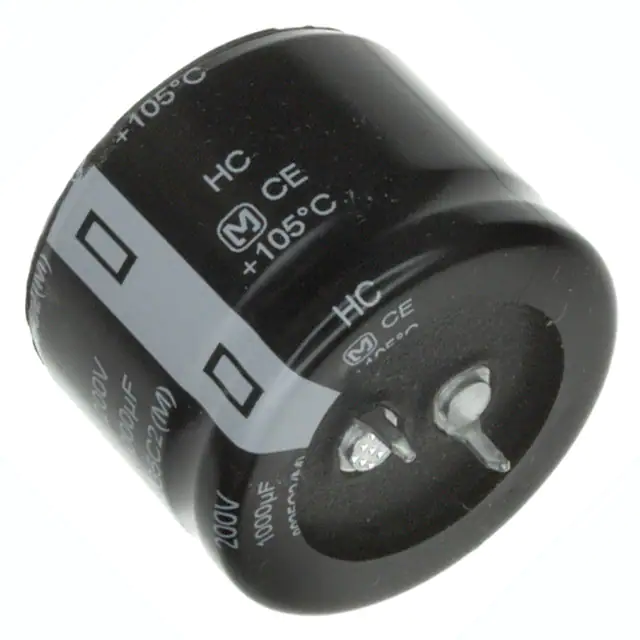

| Part Number | EET-HC2W331EA | EET-HC2W391EA | EET-HC2W331KA | EET-HC2W331LA | EET-HC2W331DA |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 330 µF | 390 µF | 330 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 450 V | 450 V | 450 V | 450 V | 450 V |
| ESR (Equivalent Series Resistance) | 553mOhm @ 120Hz | 468mOhm @ 120Hz | 553mOhm @ 120Hz | 553mOhm @ 120Hz | 553mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.38 A @ 120 Hz | 1.55 A @ 120 Hz | 1.38 A @ 120 Hz | 1.38 A @ 120 Hz | 1.38 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.93 A @ 10 kHz | 2.17 A @ 10 kHz | 1.932 A @ 10 kHz | 1.932 A @ 10 kHz | 1.93 A @ 10 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.181" Dia (30.00mm) | 1.378" Dia (35.00mm) | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) | 1.654" (42.00mm) | 1.850" (47.00mm) | 1.457" (37.00mm) | 1.850" (47.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
