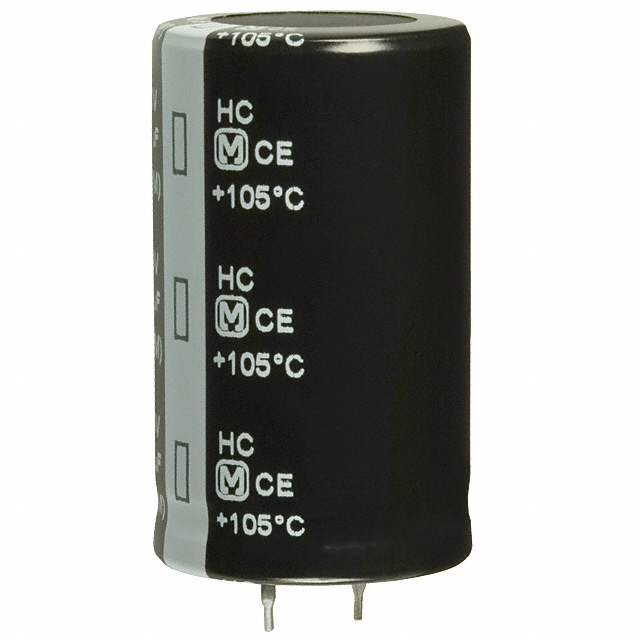

| Part Number | EET-HC2S561DA | EET-HC2V561DA | EET-HC2S561EA | EET-HC2S561KA | EET-HC2S561LA | EET-HC2G561DA |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 560 µF | 560 µF | 560 µF | 560 µF | 560 µF | 560 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 420 V | 350 V | 420 V | 420 V | 420 V | 400 V |
| ESR (Equivalent Series Resistance) | 326mOhm @ 120Hz | 296mOhm @ 120Hz | 326mOhm @ 120Hz | 326mOhm @ 120Hz | 326mOhm @ 120Hz | 326mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.9 A @ 120 Hz | 1.5 A @ 120 Hz | 1.9 A @ 120 Hz | 1.9 A @ 120 Hz | 1.9 A @ 120 Hz | 1.9 A @ 120 Hz |
| Ripple Current @ High Frequency | - | 2.1 A @ 10 kHz | - | 2.66 A @ 10 kHz | 2.66 A @ 10 kHz | 2.66 A @ 10 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.378" Dia (35.00mm) | 1.181" Dia (30.00mm) | 1.378" Dia (35.00mm) | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) | 1.850" (47.00mm) | 1.850" (47.00mm) | 2.047" (52.00mm) | 1.850" (47.00mm) | 2.047" (52.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
