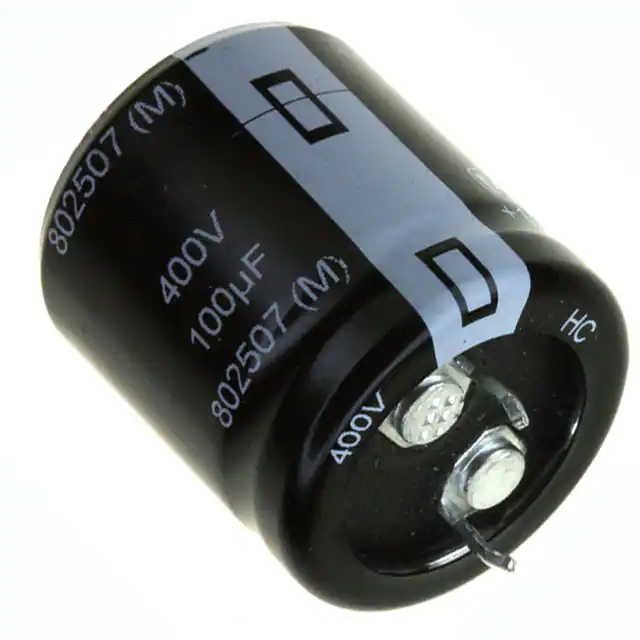

| Part Number | EET-HC2S121HA | EET-HC2S181HA | EET-HC2V121HA | EET-HC2S121JA | EET-HC2S151HA | EET-HC2S221HA | EET-HC2W121HA | EET-HC2G121HA | EET-HC2S121BA | EET-HC2S121CA |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 120 µF | 180 µF | 120 µF | 120 µF | 150 µF | 220 µF | 120 µF | 120 µF | 120 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 420 V | 420 V | 350 V | 420 V | 420 V | 420 V | 450 V | 400 V | 420 V | 420 V |
| ESR (Equivalent Series Resistance) | 1.52Ohm @ 120Hz | 1.103Ohm @ 120Hz | 1.382Ohm @ 120Hz | 1.52Ohm @ 120Hz | 1.216Ohm @ 120Hz | 829mOhm @ 120Hz | 1.52Ohm @ 120Hz | 1.52Ohm @ 120Hz | 1.52Ohm @ 120Hz | 1.52Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 740 mA @ 120 Hz | 910 mA @ 120 Hz | 750 mA @ 120 Hz | 740 mA @ 120 Hz | 840 mA @ 120 Hz | 1.05 A @ 120 Hz | 720 mA @ 120 Hz | 750 mA @ 120 Hz | 740 mA @ 120 Hz | 740 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.036 A @ 10 kHz | 1.274 A @ 10 kHz | 1.05 A @ 10 kHz | 1.036 A @ 10 kHz | 1.176 A @ 10 kHz | 1.47 A @ 10 kHz | 1.008 A @ 10 kHz | 1.05 A @ 10 kHz | - | - |
| Impedance | - | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) | 1.654" (42.00mm) | 1.063" (27.00mm) | 1.063" (27.00mm) | 1.457" (37.00mm) | 1.850" (47.00mm) | 1.457" (37.00mm) | 1.260" (32.00mm) | 1.260" (32.00mm) | 1.063" (27.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
