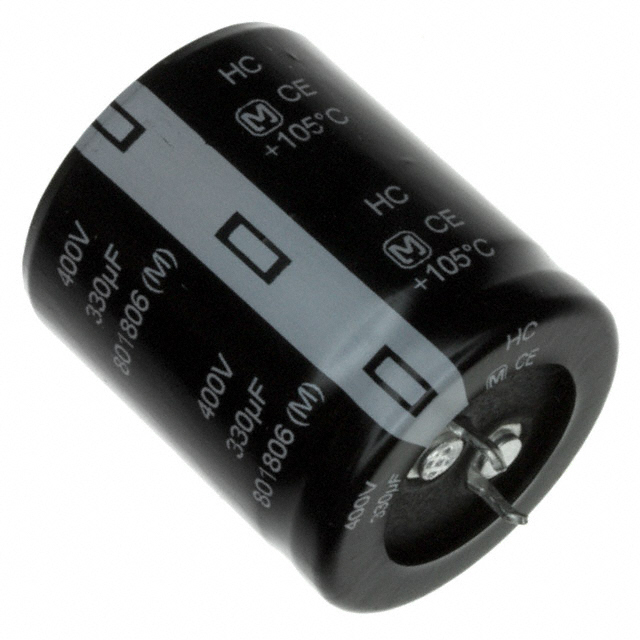

| Part Number | EET-HC2G331KA | EET-HC2G391KA | EET-HC2V331KA | EET-HC2G331LA | EET-HC2G331KF | EET-HC2S331KA | EET-HC2G331CA | EET-HC2G331DA | EET-HC2G331EA | EET-HC2G331JA |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 330 µF | 390 µF | 330 µF | 330 µF | 330 µF | 330 µF | 330 µF | 330 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 400 V | 400 V | 350 V | 400 V | 400 V | 420 V | 400 V | 400 V | 400 V | 400 V |
| ESR (Equivalent Series Resistance) | 553mOhm @ 120Hz | 468mOhm @ 120Hz | 502mOhm @ 120Hz | 553mOhm @ 120Hz | 553mOhm @ 120Hz | 553mOhm @ 120Hz | 553mOhm @ 120Hz | 553mOhm @ 120Hz | 553mOhm @ 120Hz | 553mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.44 A @ 120 Hz | 1.55 A @ 120 Hz | 1.2 A @ 120 Hz | 1.44 A @ 120 Hz | 1.44 A @ 120 Hz | 1.42 A @ 120 Hz | 1.44 A @ 120 Hz | 1.44 A @ 120 Hz | 1.44 A @ 120 Hz | 1.44 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.016 A @ 10 kHz | 2.17 A @ 10 kHz | 1.68 A @ 10 kHz | 2.016 A @ 10 kHz | 2.016 A @ 10 kHz | 1.988 A @ 10 kHz | 2.02 A @ 10 kHz | 2.02 A @ 10 kHz | 2.02 A @ 10 kHz | 2.016 A @ 10 kHz |
| Impedance | - | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.378" Dia (35.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 0.984" Dia (25.00mm) | 1.181" Dia (30.00mm) | 1.378" Dia (35.00mm) | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) | 1.654" (42.00mm) | 1.260" (32.00mm) | 1.260" (32.00mm) | 1.260" (32.00mm) | 1.457" (37.00mm) | 1.850" (47.00mm) | 1.457" (37.00mm) | 1.260" (32.00mm) | 1.850" (47.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
