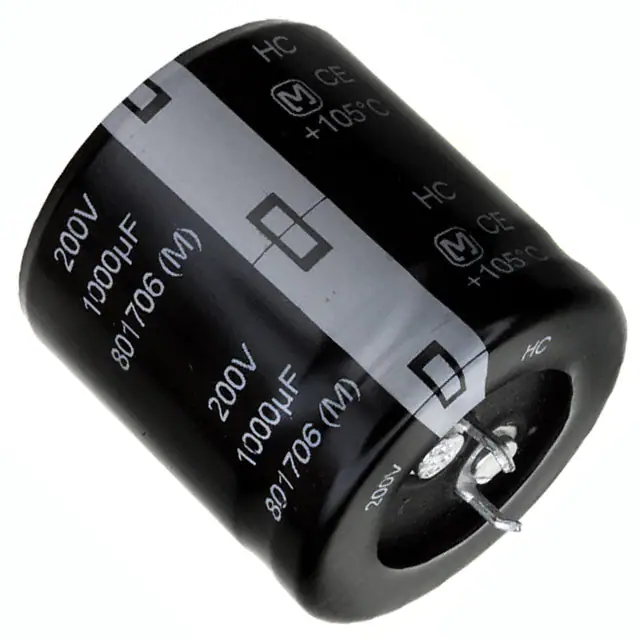

| Part Number | EET-HC2D102KA | EET-HC2D102LA | EET-HC2D122KA | EET-HC2D152KA | EET-HC2D182KA | EET-HC2E102KA | EET-HC2C102KA | EET-HC2D102BA | EET-HC2D102CA | EET-HC2D102DA | EET-HC2D102EA | EET-HC2D102HA | EET-HC2D102JA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1000 µF | 1000 µF | 1200 µF | 1500 µF | 1800 µF | 1000 µF | 1000 µF | 1000 µF | 1000 µF | 1000 µF | 1000 µF | 1000 µF | 1000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 200 V | 200 V | 200 V | 200 V | 200 V | 250 V | 160 V | 200 V | 200 V | 200 V | 200 V | 200 V | 200 V |
| ESR (Equivalent Series Resistance) | 199mOhm @ 120Hz | 216mOhm @ 120Hz | 166mOhm @ 120Hz | 133mOhm @ 120Hz | 111mOhm @ 120Hz | 166mOhm @ 120Hz | 216mOhm @ 120Hz | 199mOhm @ 120Hz | 199mOhm @ 120Hz | 199mOhm @ 120Hz | 216mOhm @ 120Hz | 199mOhm @ 120Hz | 199mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz | 2.3 A @ 120 Hz | 2.65 A @ 120 Hz | 2.8 A @ 120 Hz | 3.08 A @ 120 Hz | 2.2 A @ 120 Hz | 2.2 A @ 120 Hz | 2.3 A @ 120 Hz | 2.3 A @ 120 Hz | 2.3 A @ 120 Hz | 2.3 A @ 120 Hz | 2.3 A @ 120 Hz | 2.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.22 A @ 10 kHz | 3.22 A @ 10 kHz | 3.71 A @ 10 kHz | 3.92 A @ 10 kHz | 4.312 A @ 10 kHz | 3.08 A @ 10 kHz | 3.08 A @ 10 kHz | 3.22 A @ 10 kHz | 3.22 A @ 10 kHz | 3.22 A @ 10 kHz | 3.22 A @ 10 kHz | 3.22 A @ 10 kHz | 3.22 A @ 10 kHz |
| Impedance | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) | 1.378" Dia (35.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) | 1.181" Dia (30.00mm) | 1.378" Dia (35.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) | 1.063" (27.00mm) | 1.457" (37.00mm) | 1.654" (42.00mm) | 1.850" (47.00mm) | 1.654" (42.00mm) | 1.063" (27.00mm) | 2.047" (52.00mm) | 1.850" (47.00mm) | 1.260" (32.00mm) | 1.063" (27.00mm) | 2.047" (52.00mm) | 1.850" (47.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
