Please send RFQ , we will respond immediately.

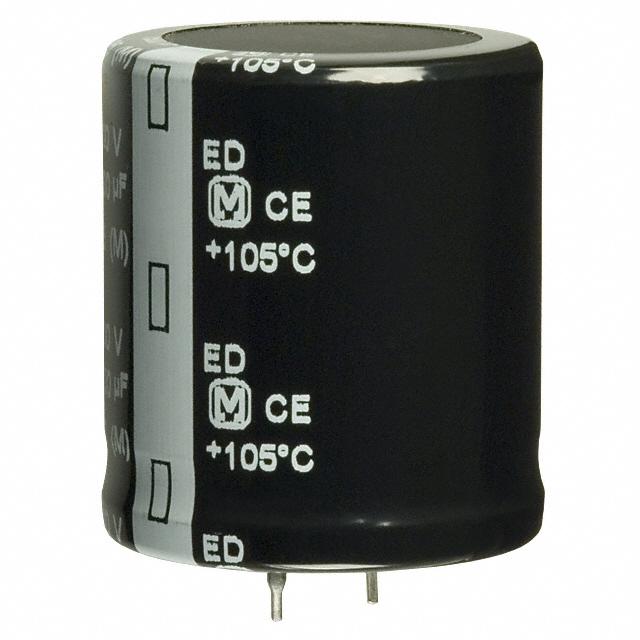

| Part Number | EET-ED2D152EA | EET-ED2D182EA | EET-ED2E152EA | EET-ED2D102EA | EET-ED2D122EA | EET-ED2D152DA |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1500 µF | 1800 µF | 1500 µF | 1000 µF | 1200 µF | 1500 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 200 V | 200 V | 250 V | 200 V | 200 V | 200 V |
| ESR (Equivalent Series Resistance) | 99mOhm @ 120Hz | 83mOhm @ 120Hz | 99mOhm @ 120Hz | 149mOhm @ 120Hz | 124mOhm @ 120Hz | 99mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 3.56 A @ 120 Hz | 3.84 A @ 120 Hz | 3.56 A @ 120 Hz | 2.84 A @ 120 Hz | 3.13 A @ 120 Hz | 3.56 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.08 A @ 100 kHz | 5.48 A @ 100 kHz | 5.08 A @ 100 kHz | 4.06 A @ 100 kHz | 4.47 A @ 100 kHz | 5.08 A @ 100 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) | 1.772" (45.00mm) | 1.969" (50.00mm) | 1.181" (30.00mm) | 1.378" (35.00mm) | 1.969" (50.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
