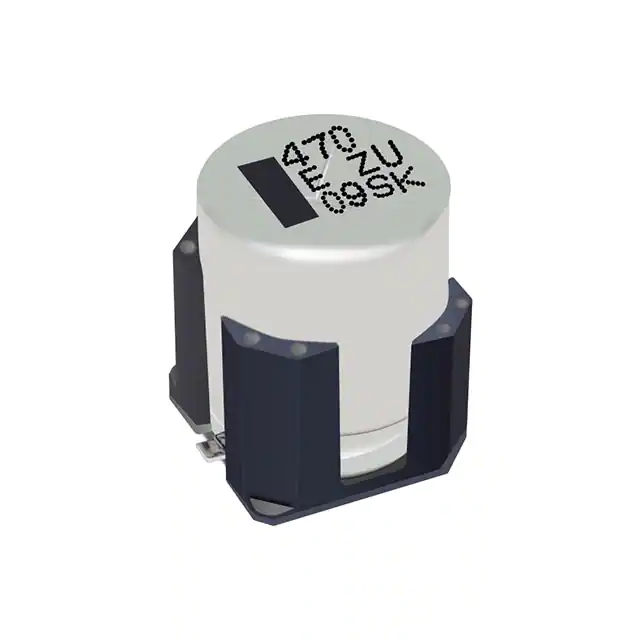

| Part Number | EEH-ZU1V331V | EEH-ZK1V331V | EEH-ZS1V331V | EEH-ZU1V331P |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Type | Hybrid | Hybrid | Hybrid | Hybrid |
| Capacitance | 330 µF | 330 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V | 35 V | 35 V |
| ESR (Equivalent Series Resistance) | 11mOhm | 20mOhm | 14mOhm | 11mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 135°C | 4000 Hrs @ 125°C | 4000 Hrs @ 125°C | 4000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 135°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Features | - | - | - | - |
| Ripple Current @ Low Frequency | 720 mA @ 100 Hz | 420 mA @ 100 Hz | 525 mA @ 100 Hz | 720 mA @ 100 Hz |
| Ripple Current @ High Frequency | 4.8 A @ 100 kHz | 2.8 A @ 100 kHz | 3.5 A @ 100 kHz | 4.8 A @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.516" (13.10mm) | 0.413" (10.50mm) | 0.516" (13.10mm) | 0.504" (12.80mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
