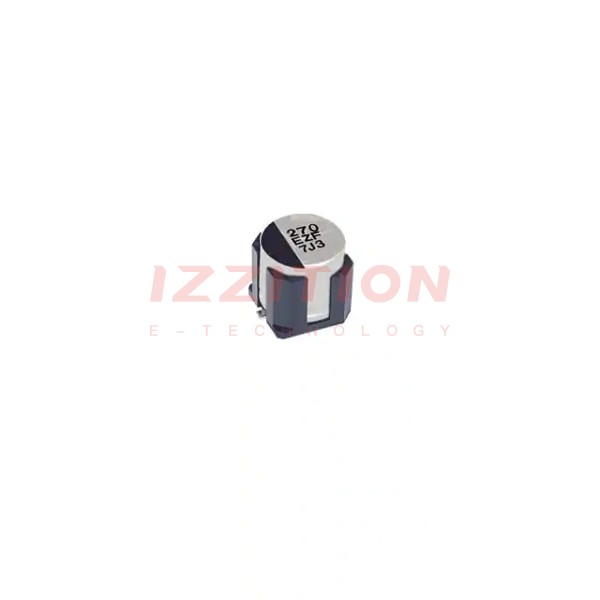

| Part Number | EEH-ZF1H101V | EEH-ZF1V101V | EEH-ZT1H101V | EEH-ZC1H101V | EEH-ZE1H101V | EEH-ZF1H101P |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Hybrid | Hybrid | Hybrid | Hybrid | Hybrid | Hybrid |
| Capacitance | 100 µF | 100 µF | 100 µF | 100 µF | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 35 V | 50 V | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | 28mOhm | 30mOhm | 23mOhm | 28mOhm | 28mOhm | 28mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 150°C | 1000 Hrs @ 150°C | 4000 Hrs @ 125°C | 4000 Hrs @ 125°C | 2000 Hrs @ 145°C | 1000 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 145°C | -55°C ~ 150°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Features | - | - | - | - | - | - |
| Ripple Current @ Low Frequency | 135 mA @ 100 Hz | 115.5 mA @ 100 Hz | 435 mA @ 100 Hz | 240 mA @ 100 Hz | 120 mA @ 100 Hz | 135 mA @ 100 Hz |
| Ripple Current @ High Frequency | 900 mA @ 100 kHz | 770 mA @ 100 kHz | 2.9 A @ 100 kHz | 1.6 A @ 100 kHz | 800 mA @ 100 kHz | 900 mA @ 100 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.425" (10.80mm) | 0.425" (10.80mm) | 0.425" (10.80mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
