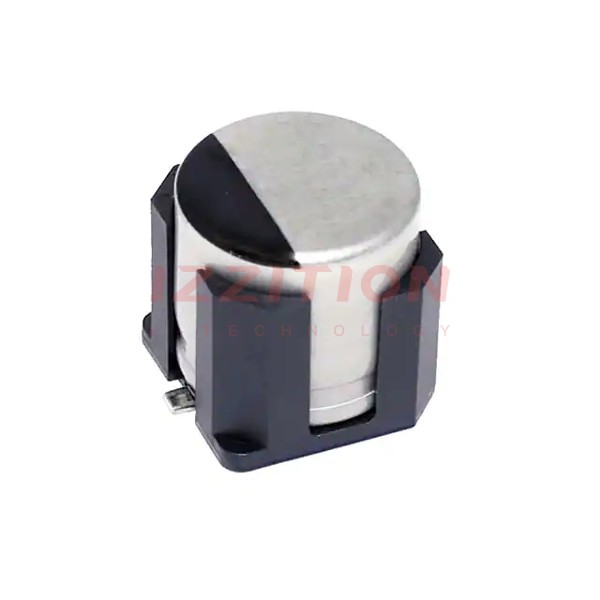

| Part Number | EEH-ZC1K220V | EEH-ZA1K220V | EEH-ZC1H220V | EEH-ZC1K220P |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Type | Hybrid | Hybrid | Hybrid | Hybrid |
| Capacitance | 22 µF | 22 µF | 22 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 80 V | 80 V | 50 V | 80 V |
| ESR (Equivalent Series Resistance) | 45mOhm | 45mOhm | 80mOhm | 45mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C | 10000 Hrs @ 105°C | 4000 Hrs @ 125°C | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Features | - | - | - | - |
| Ripple Current @ Low Frequency | 105 mA @ 100 Hz | 155 mA @ 100 Hz | 75 mA @ 100 Hz | 105 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz | 1.55 A @ 100 kHz | 750 mA @ 100 kHz | 1.05 A @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.217" (5.50mm) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
