EEH-AZSE102UB
  • Share:

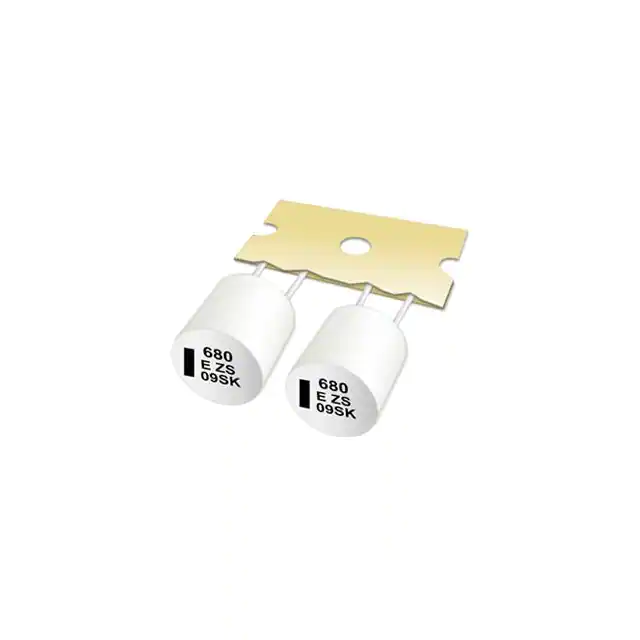

Panasonic Electronic Components EEH-AZSE102UB

Manufacturer No:
EEH-AZSE102UB
Manufacturer:
Panasonic Electronic Components
Package:
Cut Tape (CT)
Datasheet:
EEH-AZSE102UB Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY HYB 1000UF 25V T/H
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Hybrid
Capacitance:1000 µF
Tolerance:±20%
Voltage - Rated:25 V
ESR (Equivalent Series Resistance):11mOhm
Lifetime @ Temp.:4000 Hrs @ 125°C
Operating Temperature:-55°C ~ 125°C
Ratings:AEC-Q200
Applications:Automotive
Features:-
Ripple Current @ Low Frequency:800 mA @ 120 Hz
Ripple Current @ High Frequency:4 A @ 100 kHz
Impedance:-
Lead Spacing:0.197" (5.00mm)
Size / Dimension:0.394" Dia (10.00mm)
Height - Seated (Max):0.657" (16.70mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

-
164

Please send RFQ , we will respond immediately.
