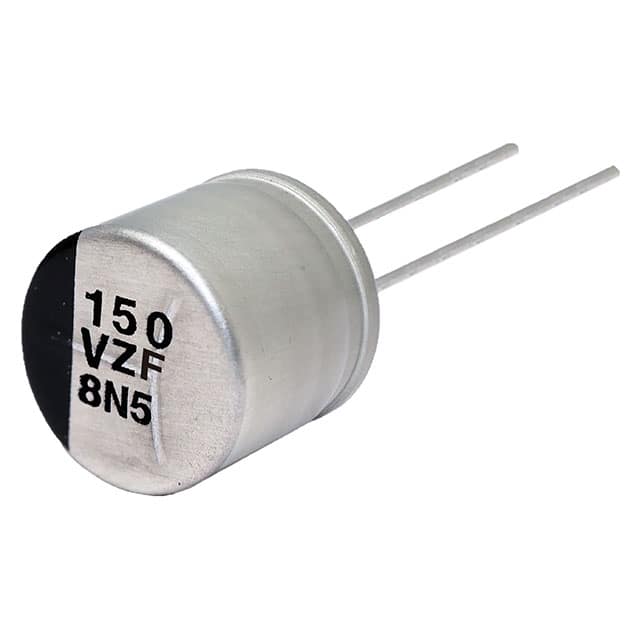

| Part Number | EEH-AZF1E271 | EEH-AZF1E271B |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Active |
| Type | Hybrid | Hybrid |
| Capacitance | 270 µF | 270 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V |
| ESR (Equivalent Series Resistance) | 20mOhm | 20mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 150°C | 1000 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C |
| Ratings | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive |
| Features | - | - |
| Ripple Current @ Low Frequency | 150 mA @ 100 Hz | 150 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1 A @ 100 kHz | 1 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.413" (10.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
