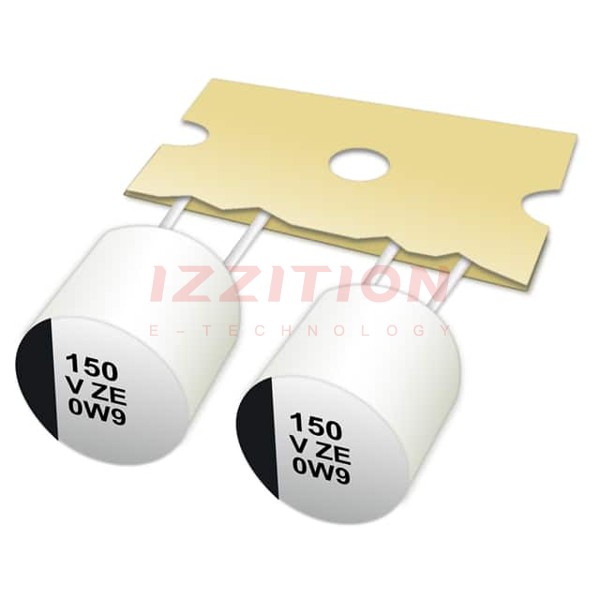

| Part Number | EEH-AZE1J560B | EEH-AZF1J560B | EEH-AZT1J560B | EEH-AZA1J560B | EEH-AZC1J560B |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Type | Hybrid | Hybrid | Hybrid | Hybrid | Hybrid |
| Capacitance | 56 µF | 56 µF | 56 µF | 56 µF | 56 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V | 63 V | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | 30mOhm | 30mOhm | 25mOhm | 30mOhm | 30mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 145°C | 1000 Hrs @ 150°C | 4000 Hrs @ 125°C | 10000 Hrs @ 105°C | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 145°C | -55°C ~ 150°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive |
| Features | - | - | - | - | - |
| Ripple Current @ Low Frequency | 120 mA @ 100 Hz | 126 mA @ 100 Hz | 420 mA @ 100 Hz | 270 mA @ 100 Hz | 210 mA @ 100 Hz |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz | 840 mA @ 100 kHz | 2.8 A @ 100 kHz | 1.8 A @ 100 kHz | 1.4 A @ 100 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
